2LB Series Horizontal Twin Screw Pump

  • UC Marine
  • Marine Pumps
  • Marine Screw Pump
  • CCS,BV,ABS,DNV,GL,LR,KR,NK
  • China

Product Description

2LB Series Horizontal Twin Screw Pump

Mainly use for transfer for various oil with micro particle, such as fuel and lubricant, chemical liquid, light industrial food, also can transfer oil with bigger viscosity, such as residual oil and crude oil.  But must have awarming to such oil, and the temperature not more than 80°C, in special case, also can reach 180°C and viscosity up to 10000mm2/s.

Type Flow rate Pressure Power Inlet dia Outlet dia
(m3/h) (Mpa) (Kw) (mm) (mm)
2LB-6 6 1 3.6 50 50
2LB-12 12 1 6.2 50 50
2LB-25 25 1 11.8 80 80
2LB-35 35 1 17.3 80 80
2LB-50 50 1 24.6 100 100
2LB-80 80 1 34 100 100
2LB-100 100 1 42 150 150
2LB-120 120 1 49.9 150 150
2LB-150 150 1 61.2 150 150
2LB-200 200 1 76.8 200 150
2LB-250 250 1 95 200 150
2LB-300 300 1 111 250 200
2LB-350 350 1 132 250 200
2LB-400 400 1 166 250 200
2LB-450 450 1 184 300 250
2LB-500 500 1 202 300 250
2LB-600 600 1 229 350 300
2LB-650 650 1 250 350 300
2LB-700 700 1 270 350 300
2LB-750 750 1 287 350 300
2LB-800 800 1 318 350 300
2LB-900 900 1 346 400 350
2LB-1000 1000 1 380 400 350
2LB-1200 1200 1 456 400 350
2LB-1500 1500 1 570 450 400
2LB-2000 2000 1 760 500 450
2LB-2500 2500 1 950 550 500

If you are interested in 2LB Series Horizontal Twin Screw Pump,please contact us for more details.

2LB Horizontal Twin Screw Pump Manufacture 01.jpg

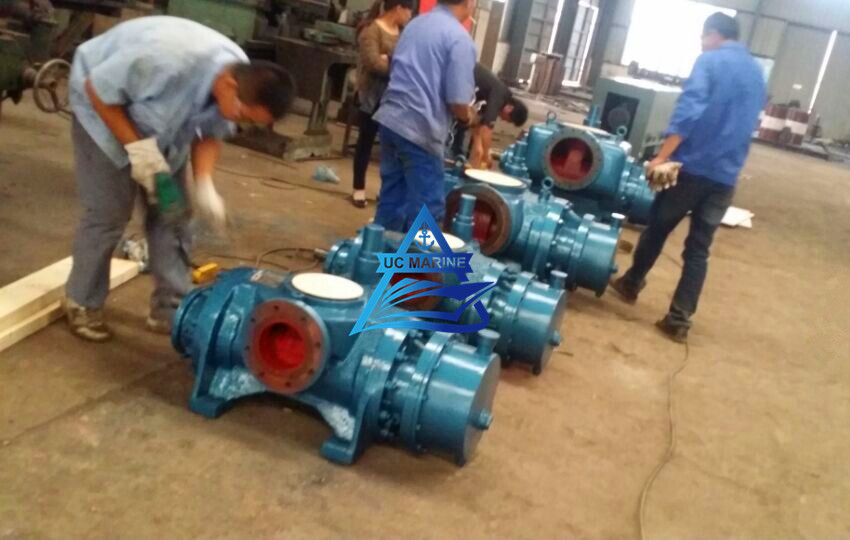

2LB Horizontal Twin Screw Pump Manufacture 02.jpg
