CJY Series Marine Vertical Deep-well Oil Pump

  • UC Marine
  • Marine Pumps
  • Deep-well Oil Pump
  • CCS,BV,ABS,DNV,GL,LR,KR,NK
  • China

Product Description

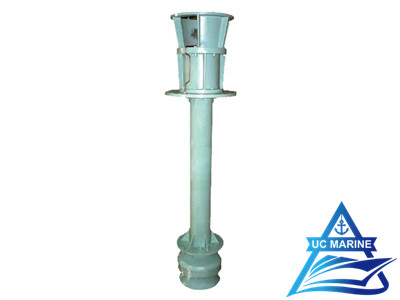

CJY Series Marine Vertical Deep-well Oil Pump

The CJY series marine vertical deep-well oil pump is used to pumping lubricating oil and it is driven by motor.Because of the long shaft of the pump,it is able to used for the circulation between the up cabin and the down cabin,it can be replaced the bulkhead drive device,which used with horizontal pump ago.The pump features in small occupation of floor,high efficiency,easy operation and easy maintenance.The pump is used to pumping oil in oil tanker primarily.

The pump rotates clockwise viewed from the top of motor.

(50HZ,3Ф,440v) Performance parameter
TypeCapacity(m3/h)Head (m)Speed(r/min)Motor power(kw)
CJY200-715835148045
CJY200-5.517550148075
(60HZ,3Ф,440v) Performance parameter
CJY200-719050178075
CJY200-5.5210721780132
Pls contact us for more details.

If You Are Interested In CJY Series Marine Vertical Deep-well Oil Pump,Please Contact Us For More Details.
