CWY Type Marine Diesel Emergency Fire Pump

  • UC Marine
  • Marine Pumps
  • Diesel Emergency Fire Pump
  • CCS,BV,ABS,DNV,GL,LR,KR,NK
  • China

Product Description

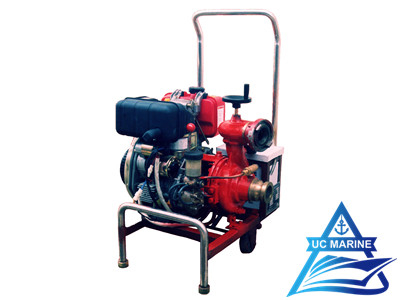

CWY Type Marine Diesel Emergency Fire Pump

CWY-type marine diesel emergency fire pump is developed in accordance with relevant provisions of the rules and regulations for the Construction of sea-going steal ships-2009,issued by China Classification society (CCS),and the International Convention on the safety of  Life at sea.It is mainly applied in emergency fire protection for vessels,and additionally,in industrial and mining enterprises,ports and docks,warehouse or freight yard etc.

The pump integrates widely acclaimed features such as light weight,small size,flexibility in moving,rapid starting,rapid discharge,large capacity of fuel tank,anti-corrosion,reliability and ease of maintenance etc.

When the diameter is between Ф50 to Ф65,the pump set may be started by manual or electrically started.The diesel engine may be vertical,single-cylinder,4-stroke and air cooled.

When the diameter is between Ф80 to Ф100,the  pump set may be started by spring starter or electrically started.The diesel engine may be verticql,multi-cylinder,4 stroke and water cooled.The outlet may be deployed as required for air cooling.

Portable  Sliding vane pump priming
Type CapacityHeadSpeed Suction headTime of discharge
(m3/h)(m)(r/min)(m)(s)
65CWY-30253036006~7≤35
65CWY-40304036006~7≤35
TypeDiesel engineWeightDiameter of discharge
TypePower(kg)(kg)(mm)
65CWY-30KM186F5.798/8365/50
65 CWY-40KM186F5.7100/8565/50

Self-priming pump
TypeCapacityHeadSpeed Suction headTime Diesel engineSuction diameterWeight
(m3/h)(m)(r/min)(m)(s)Type Power(kW)(mm)(kg)
50CWY-4325.54336006≤150KM186F5.750/50110
65CWY-40304036006≤150KM186F5.765/65110
80CWF-60506029505≤150CZ380Q20.580/80410
100CWY-75727515005≤1502135Aca31.5100/100

If You Are Interested In CWY Type Marine Diesel Emergency Fire Pump,Please Contact Us For More Details.
