Marine External Fire Fighting System

Marine External Fire Fighting System

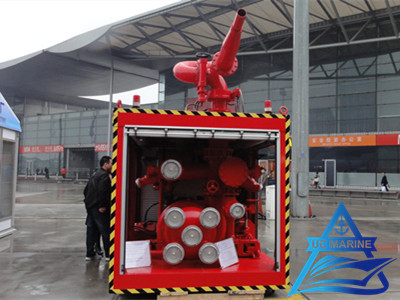

Marine external fire fighting system is driven by diesel engine. The fire pump and engine will be installed on a common base.

Consisting of:

1. Fire Pump:2 sets

Type: Horizontal, single stage, centrifugal pump

Duty Specified

Capacity: 600 m3/h

Total Head: 130 m L.C.

Speed: 2100 rpm

Power absorbed : 273.6 kW (Seawater)

Efficiency: 80%

Discharge  : Top, DN200 PN 25

Suction: End, DN250 PN 16

Direction of rotation: CW (viewing from driver end)

Materials of Construction

Casing: Nodular cast iron

Impeller: Bronze

Shaft  : Stainless steel AISI 316

Packing: Soft packed

2. Diesel Engine:2 sets

Engine Model:TBD234V8, China

Type:4 Cycle, 8 Cylinder, electrical start, 24VDC

Rating Type:Heavy Duty

Rated Engine Power:323kw @ 2100 rpm

Direction of rotation:CCW (viewing from driver end)

3. High Flexible Coupling

Mounted between PTO of diesel engine and pump

Final model to be selected by maker.

If you are interested in marine external fire fighting system, please contact us for more details.
