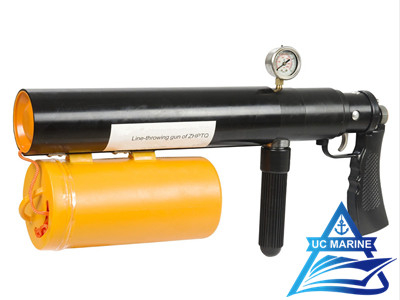

Multifunctional Pneumatic Line-throwing Gun

Multifunctional Pneumatic Line-throwing Gun

Multifunctional pneumatic line-throwing gun which formed by the transmitter, micro-gas cylinders and inflatable life buoy. in the Launcher barrelof dumped nto the life buoy, the life buoy composed of pieces from the air chamber are connected together and wrapped in the enclosure, left the water hole in the one end of shell meanwhile the other end connected rope, else with the 120 meters throwing, it can be connected very quickly with the life buoy, prepared the above- mentioned work, the knob on the dumped device turn to the insureds insurance status, and then dumped with CO2 storage cylinders to filled compressed gas inside, so dumped in the outgoing state transmitter.

Main Technical Parameters of Line Throwing and Buoy:

1. Weight: throwing units<3.5kg, life buoy<0.6kg

2. Inflation time: <5s

3. Buoyancy: life buoy>78N

4. Buoyancy loss after 24h: <5%

5. CO2 weight: life buoy 17g

6. Total length of line: 120m

7. Ambient temperature for use: -30--+65 degree

8. Throwing distance: 80-100m

If you are interested in multifunctional pneumatic line-throwing gun, please contact us for more details.
