UC Marine
Marine Winch
Electric Single Drum Mooring Winch
ABS,LR,BV,GL,CCS,RINA,IRS
China
Product Description

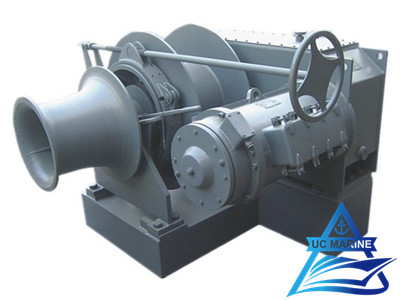

Electric Single Drum Mooring Winch
| Winch Model | Drum Load | Nominal Speed | Supporting Load | Rope Dia. | Rope Size |
| (kN) | (m/min) | (Kn) | (mm) | (m) | |
| DB-30/0.25 | 30 | 15 | 90 | 16 | 150 |
| DB-40/0.25 | 40 | 15 | 120 | 18 | 150 |
| DB-50/0.25 | 50 | 15 | 150 | 20 | 180 |
| DB-75/0.25 | 75 | 15 | 220 | 26 | 180 |
| DB-80/0.25 | 80 | 15 | 240 | 26 | 200 |
| DB-100/0.25 | 100 | 15 | 300 | 28 | 200 |
| DB-125/0.25 | 125 | 15 | 310 | 30 | 200 |
| DB-150/0.25 | 150 | 150 | 450 | 32 | 250 |
| DB-160/0.25 | 160 | 15 | 470 | 32 | 250 |
| DB-200/0.16 | 200 | 9.6 | 590 | 40 | 250 |
| DB-250/0.16 | 250 | 9.6 | 730 | 44 | 250 |
| DB-315/0.13 | 315 | 7.8 | 940 | 52 | 250 |
| DB-350/0.13 | 350 | 7.8 | 1050 | 54 | 250 |
| DB-400/0.13 | 400 | 7.8 | 1080 | 56 | 250 |
If you are interested in Electric Single Drum Mooring Winch,please contact us for more details.
