UC Marine
Navigation Signal Light
All-round Light
Red/Green/White
CCS,CE
China
Product Description

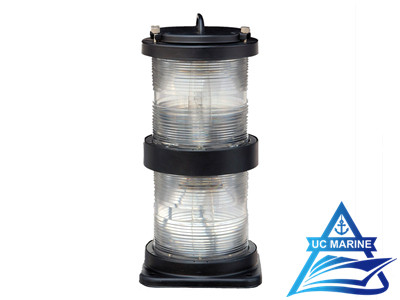

Marine Double-deck Navigation Signal All-round Light
Double-deck all-round light applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
1. Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships
2. Confirm to the international standard IEC60598-1-2008
3. Confirm to the standard of marine electric signal light's technical condition GB/T3028-1995
Technical Data of Double-deck All-round Light:
| Model | CXH6-101P | CXH6-101PL | CXH6-10B | CXH6-10P | CXH6-10S |
| Visibility | 3n.m | 3n.m | 3n.m | 3n.m | 3n.m |
| Level arc | 360° | 360° | 360° | 360° | 360° |
| Color | Red/Green/White | Red/Green/White | Red/Green/White | Red/Green/White | Red/Green/White |
| Lamp holder | P28S | LED | B22d | B22d | P28S |
| Voltage | 24V/110V/240V | 100V-240V | 24V/110V/240V | 24V/110V/240V | 24V/110V/240V |
| Power | 2*60W/2*65W | 2*8W | 2*60W/2*65W | 2*60W/2*65W | 2*60W/2*65W |
| Material | PA+GF | PA+GF | Steel | PA+GF | Stainless steel |
If you are interested in marine double-deck navigation signal all-round light, please contact us for more details.
