UC Marine
Navigation Signal Light
Masthead Light
White
CCS,CE
China
Product Description

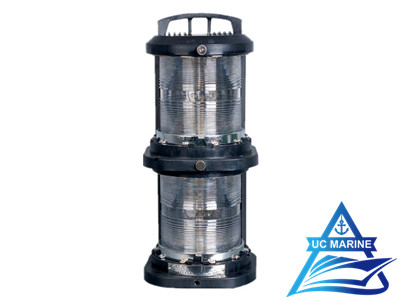

Marine Double-deck Navigation Signal Masthead Light
Double-deck masthead light applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
*Conform to the protection class IP56 standard
*Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships
*Confirm to the international standard IEC60598-1-2008
*Confirm to the standard of marine electric signal light's technical condition GB/T3028-1995
Technical Data of Double-deck Masthead Light:
| Model | CXH3-101P | CXH3-101PL | CXH3-10B | CXH3-10P | CXH3-10S |
| Visibility | 6n.m | 6n.m | 6n.m | 6n.m | 6n.m |
| Level arc | 225° | 225° | 225° | 225° | 225° |
| Color | White | White | White | White | White |
| Lamp holder | P28S | LED | B22d | B22d | P28S |
| Voltage | 24V/110V/240V | 100V-240V | 24V/110V/240V | 24V/110V/240V | 24V/110V/240V |
| Power | 2*60W/2*65W | 2*8W | 2*60W/2*65W | 2*60W/2*65W | 2*60W/2*65W |
| Material | PA+GF | PA+GF | Steel | PA+GF | Stainless steel |
If you are interested in marine double-deck navigation signal masthead light, please contact us for more details.
