Plate Type Fresh Water Generator

  • UC Marine
  • Fresh Water Generator
  • Plate type
  • Titanium alloy
  • CB1397-2008
  • CCS
  • China

Product Description

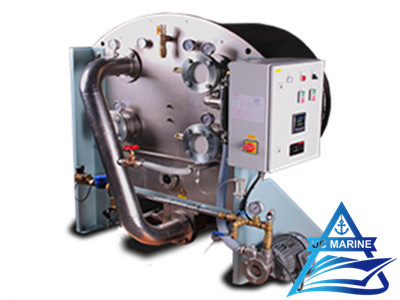

Plate Type Fresh Water Generator

Plate Type Fresh Water Generator mainly consists of evaporating, condensing chamber, ejector equipped to achieve vacuum, fresh water pump for delivering distilled water to storage tank. Heat exchanger is made of titanium. It's an energy-saving device because of using jacket water heat and lower boiling point of water in vacuum.


Technical Data of Fresh Water Generator:

Model Capacity Dimension Weight Operation Weight
(T/Day) L×W×H(mm) (kg) (kg)
FWG-3 3 1295×915×980 390 550
FWG-5 5 1295×965×980 400 550
FWG-7 7 1295×1075×980 430 580
FWG-8 8 1510×1025×1200 800 950
FWG-10 10 1510×1025×1200 850 1050
FWG-12 12 1510×1075×1200 900 1150
FWG-15 15 1710×1170×1420 1000 1200
FWG-18 18 1710×1170×1420 1200 1450
FWG-20 20 1710×1270×1420 1250 1480
FWG-25 25 1710×1385×1420 1320 1500
FWG-30 30 1790×1250×1740 1400 1550

Seawater desalination has become a very affordable solution to cope with fresh water shortage typically in ships. We not only supply Plate Type Fresh Water Generator, but also Shipboard Flake-ice Machines and Seawater Flake Ice Machine.

Shipboard Flake-ice Machines

Shipboard Flake-ice Machines


Seawater Flake Ice Machine

Seawater Flake Ice Machine

If you are interested in plate type fresh water generator, please contact us for more details.
