Seawater Flake Ice Machine

  • UC Marine
  • Flake Ice Machines
  • Stainless steel
  • Fresh-keeping
  • China

Product Description

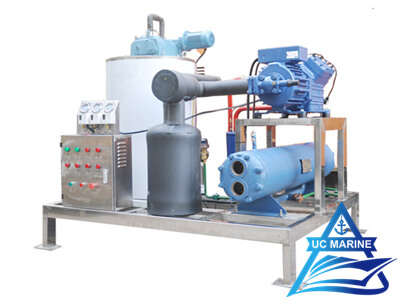

Seawater Flake Ice Machine

Seawater flake ice machine directly use seawater to produce flake ice, and the biggest differences between marine flake ice making machine and in-land flake ice making machine are the selection of pipe materials and the design of the compressor. In order to avoid the corrosion of sea water, marine ice flake machine uses specialized piping material. Meanwhile, marine ice flake maker applied piston compressor with deepened oil tank in order to overcome violent shaking on vessel, and the ice flaker machine can also work even if the vessel tilted 30 degrees on the sea.


Technical Data of Seawater Flake Ice Machine:

Model SF-1 SF-2 SF-3 SF-5
Daily Output 1t/24h 2t/24h 3t/24h 5t/24h
Cooling Capacity 6.7kw 12.2kw 19kw 31.6kw
General Power 5.25kw 8.91kw 12.24kw 22.39kw
Compressor Input 4.38kw 7.67kw 11kw 20.4kw
Reducer Power 0.37kw 0.37kw 0.37kw 0.37kw
Cooling Mode Sweater cooling Sweater cooling Sweater cooling Sweater cooling
Drain Pipe 1/2' 1/2' 1/2' 1/2'
Weight 500kg 600kg 650kg 1050kg
Dimension 1320*950*1000mm 1500*1200*1300mm 1600*1285*1350mm 1800*1500*1560mm

We not only supply Seawater Flake Ice Machine, but also Reverse Osmosis Fresh Water Makers and Plate Type Fresh Water Generator.

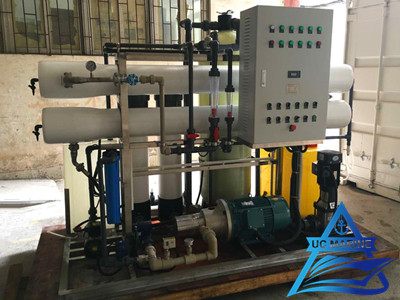

Reverse Osmosis Fresh Water Makers

Reverse Osmosis Fresh Water Makers

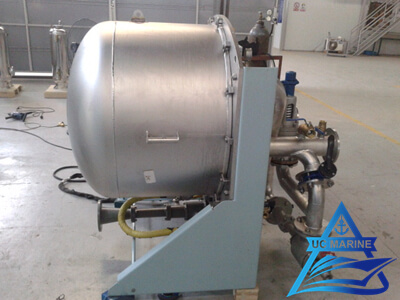

Plate Type Fresh Water Generator China

Plate Type Fresh Water Generator

If you are interested in seawater flake ice machine, please contact us for more details.
