Flake Ice Machines for Fishing Vessels

  • UC Marine
  • Flake Ice Machines
  • Stainless steel
  • Fresh-keeping
  • China

Product Description

Flake Ice Machines for Fishing Vessels

The quality of the catch depends very much of the availability of ice for assuring continuous refrigeration. The refrigeration begins already directly after the catch, that means onboard the fishing vessels. But in the open sea, conditions are rough and can impact the trouble-free operation of a 'normal' flake ice machine.


Features of Flake Ice Machines for Fishing Vessels:

*For avoiding damages in the salt-containing ambiance at sea, the machine parts are made in high-quality non-corroding material.

*For the trouble-free operation also in rough sea, the water tank is equipped with a special slop-over protection.

*Complete electrical controls included for ensuring permanent operational reliability and easy maintenance - an important aspect if the vessel is for weeks at sea and far from the port.


Technical Data of Flake Ice Machines for Fishing Vessels:

Model SF-1 SF-2 SF-3 SF-5
Daily Output 1t/24h 2t/24h 3t/24h 5t/24h
Cooling Capacity 6.7kw 12.2kw 19kw 31.6kw
General Power 5.25kw 8.91kw 12.24kw 22.39kw
Compressor Input 4.38kw 7.67kw 11kw 20.4kw
Reducer Power 0.37kw 0.37kw 0.37kw 0.37kw
Cooling Mode Sweater cooling Sweater cooling Sweater cooling Sweater cooling
Drain Pipe 1/2' 1/2' 1/2' 1/2'
Weight 500kg 600kg 650kg 1050kg
Dimension 1320*950*1000mm 1500*1200*1300mm 1600*1285*1350mm 1800*1500*1560mm

We not only supply Flake Ice Machines for Fishing Vessels, but also Marine Seawater Desalination RO System and Reverse Osmosis Fresh Water Generator.

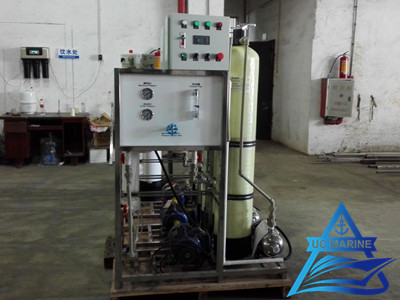

Marine Seawater Desalination RO System Factory

Marine Seawater Desalination RO System

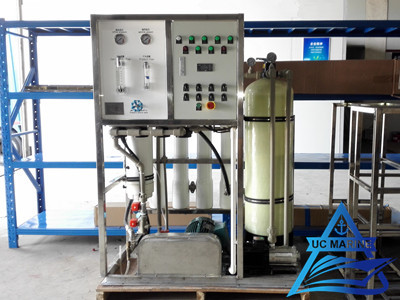

Reverse Osmosis Fresh Water Generator Manufacturers

Reverse Osmosis Fresh Water Generator

If you are interested in flake ice machines for fishing vessels, please contact us for more details.
