UC Marine
Marine Capstan
Stainless Steel Anchor Capstan
CCS,BV,NK,ABS,DNV,GL,LR etc
China
Product Description

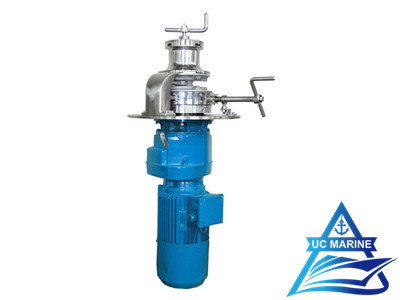

Ultra-light Stainless Steel Anchor Capstan
| Model | Chain Dia. | Rated Load | Holding Load | Working Speed | Motor Power (KW) | |
| (mm AM2) | (KN) | (KN) | (m/min) | Electric | Hydraulic | |
| QDMJ12.5 | 12.5 | 6.6 | 41 | 14 | 2.4/1.5 | 4 |
| QDMJ14 | 14 | 8.3 | 52 | 12 | 2.4/1.5 | 4 |
| QDMJ16 | 16 | 10.9 | 67 | 12 | 3/1.2 | 5.5 |
| QDMJ17.5 | 17.5 | 13 | 80 | 10 | 3/1.2 | 5.5 |
| QDMJ19 | 19 | 15.3 | 95 | 12 | 4.3/1.7 | 5.5 |
| QDMJ20.5 | 20.5 | 17.9 | 110 | 10 | 4.3/1.7 | 7.5 |
| QDMJ22 | 22 | 20.6 | 126 | 12 | 6/2.5 | 7.5 |
| QDMJ24 | 24 | 24.5 | 149 | 10 | 6/2.5 | 11 |
| QDMJ26 | 26 | 28.7 | 175 | 12 | 8.5/3.5 | 11 |
| QDMJ28 | 28 | 33.3 | 202 | 10 | 8.5/3.5 | 15 |
If you are interested in Ultra-light Stainless Steel Anchor Capstan,please contact us for more details.
