UC Marine
Marine Hydrophore
Pressure Water Tank
CCS,GL,EC,BV,LR,ABS,NK
China
Product Description

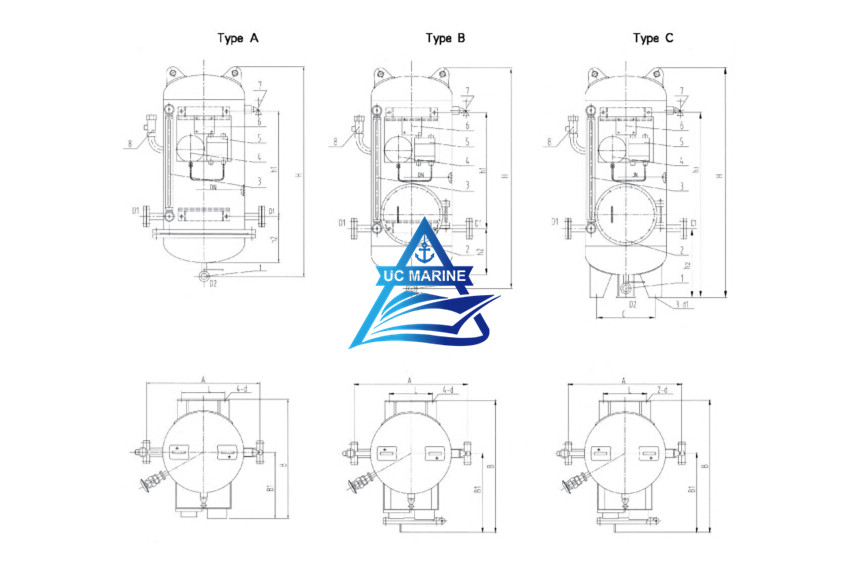

YLG Series Marine Pressure Water Tank
The pressure water tank can be used to provide fresh water for living and cleaning of ship and Drilling platforms.
Principle Description:
This device uses pressured water by pump produced by shipyard,to compress the air inside of tank,in order to maintain the water in cabinet body under a suitable air pressure.So as to provide fresh water to the crews.
Main technical requirements:
| Type | YLG Series |
| Volume | 0.12-3.0m3 |
| Working pressure | 0.6MPa |
| Design pressure | 0.7MPa |
| Strength test pressure | 1.05MPa |
| Air tightness test pressure | 0.875MPa |
| Open pressure of safety valve | 0.63MPa |
| Working temperature | 0~45℃ |
| Design temperature | 50℃ |
If You Are Interested In YLG Series Marine Pressure Water Tank,Please Contact Us For More Details.
