UC Marine
Marine Calorifier
Steam Electric Heating Hot Water Tank
CCS,GL,EC,BV,LR,ABS,NK
China
Product Description

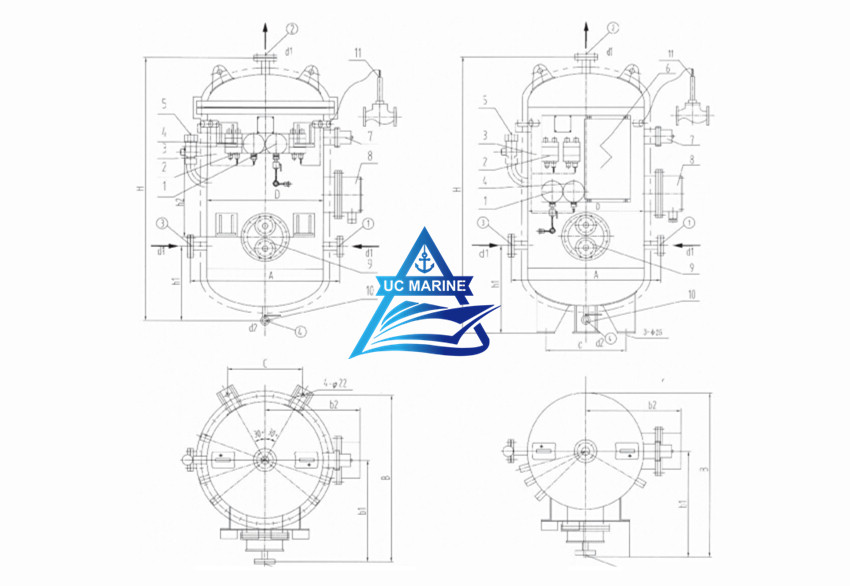

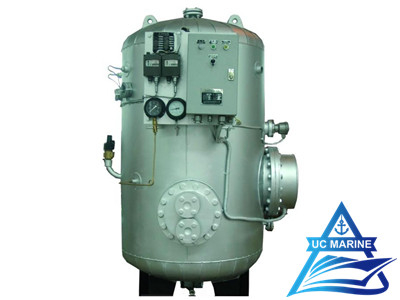

ZDR Series Marine Steam Electric Heating Hot Water Tank
This steam-electric hot water tank is suitable for all kinds of ship which have steam source or power to produce hot water which is for crewmen.
| Type | ZDR Series | |||||
| Capacity(M3) | 0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 |
| Working pressure(Mpa) | 0.4 | |||||
| Design Pressure(Mpa) | 0.45 | |||||
| Test Pressure(Mpa) | 0.3 | |||||
| Water inlet Temp.(℃） | 15 | |||||
| Water outlet Temp.(℃） | 65 | |||||
| Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 | 325 |
| Steam hot water capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 | 3259 |
| Steam hot water area(m2) | 0.24 | 0.38 | 0.6 | 1 | 2.6 | 3.5 |
| Electric heatng water(kg/h) | 90 | 140 | 180 | 280 | 360 | 540 |
| Electric heating power(kw) | 6 | 9 | 12 | 18 | 24 | 36 |
If You Are Interested In ZDR Series Steam Electric Heating Hot Water Tank,Please Contact Us For More Details.
