ZRG Series Marine Steam Heating Hot Water Tank

  • UC Marine
  • Marine Calorifier
  • Steam Heating Hot Water Tank
  • CCS,GL,EC,BV,LR,ABS,NK
  • China

Product Description

ZRG Series Marine Steam Heating Hot Water Tank

This series of hot water tank is suitable for fresh water system which is heated by steam.

Type ZRG Series
Capacity(M3) 0.12 0.2 0.3 0.5 1
Working pressure(Mpa) 0.6
Design Pressure(Mpa) 0.7
steam Pressure(Mpa) 0.3
Water inlet Temp.(℃) 15
Water outlet Temp.(℃) 65
Steam consumption(kg/h) 27.5 45 75 120 325
Heated water capacity(kg/h) 275 450 750 1200 3250
Steam hot water area(m2) 0.24 0.38 0.6 1 2.6
Weight (kg) 155 205 222 286 343

If You Are Interested In ZRG Series Marine Steam Heating Hot Water Tank,Please Contact Us For More Details.

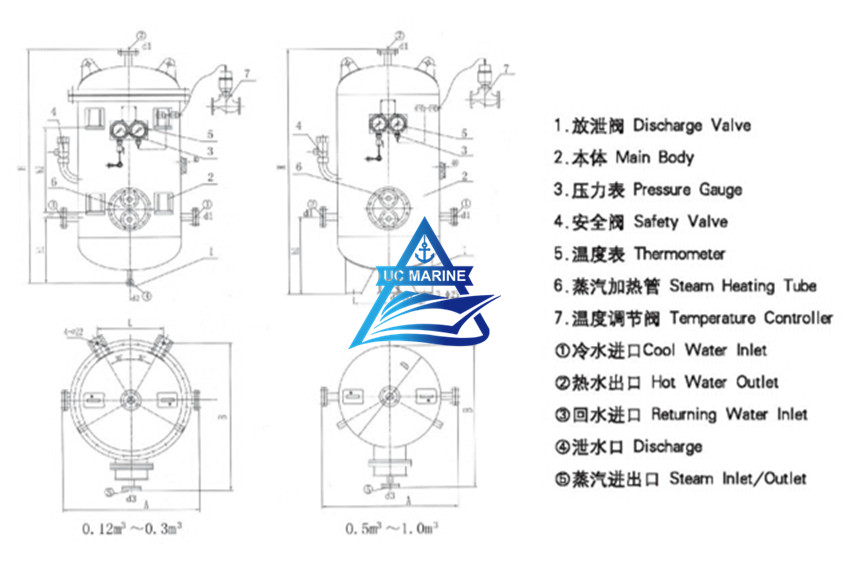

ZRG Series Marine Steam Heating Hot Water Tank.jpg
