Product Description

10 Inch TFT Dual-channel Sounder

DS2020, echo sounder with a 10.4 inch, high resolution graphic LCD, continuously shows echo graphics on the LCD along with complete navigational details.

10 Inch TFT Dual-channel Sounder
Item Specification
Graphical Display 10inch color TFT LCD 640*480pixels
Frequency 200kHz(dual-channel)
Power supply DC24V (19V-36V)
Accuracy +1.0%-1.0% of range
Min Detectable Depth 0.3m
Alarm 0.4-15m shallow alarm
Time scale 30s,Uninterrupted cycle display
Product protection Over voltage/over current/counter-polarity protection
Temperature -10-+40℃,IEC60945
Water proof 10%-90% relative
Host protection IP23
Transducer IP66
Measurement H264xW270XD93
Mounting Table/Ceiling/Flush mounting

If You Are Interested In 10 Inch TFT Dual-channel Sounder,Please Contact Us For More Details.

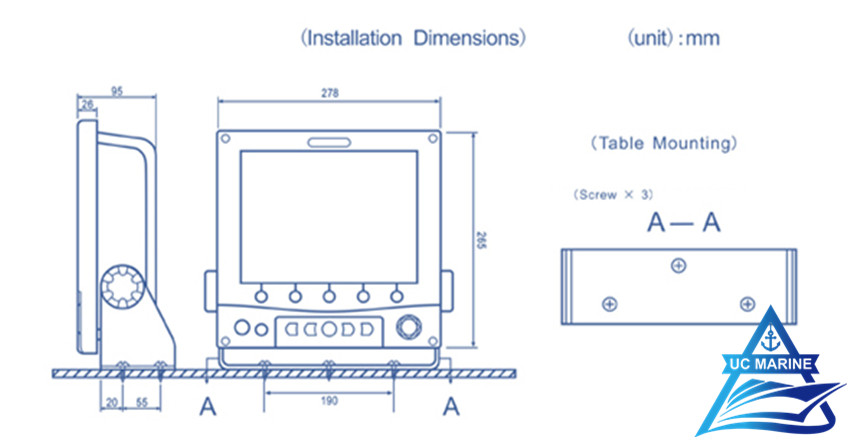

10 Inch TFT Dual-channel Sounder.jpg
