Doppler Speedlog

  • UC Marine
  • Marine Navigation Equipment
  • Doppler Speedlog
  • CCS
  • China

Product Description

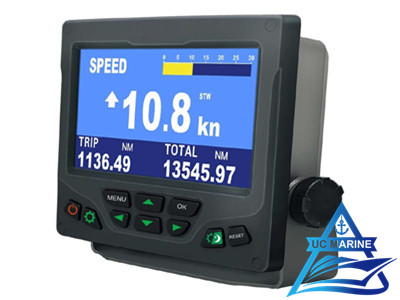

Doppler Speedlog

Applying new technology of high integration and high stability, DS99 doppler speed log provides you the optimum choice for large ship.

Doppler Speed log
Item Specification
Display LCD 7 inch TFT 480x234pixels
STW Speed Arrow+Digital Speed Display
Data Output IEC 61162-1 VBW,VLW
Trip Counter Measurement from 0 to 9999.99NM
Total counter Measurement from 0 to 999999.99NM
Distance Accuracy 0.2NM or 2%,whichever is greater
Speed Accuracy 0.2kn or 2%,whichever is greater
Speed range -10~+40kn
Power Supply AC110/220V, 50/60HZ
Operating Temp -15 to +55℃,0 to+40℃ recommended
Humidity When 40±3℃, 93%±2% relative
Compass safe distan Displayer STD 1.08m STEER 0.45M
Controller STD1.32m  STEER 0.84M
Protection Displayer IP23, Controller IP23, Transceiver IP56

If You Are Interested In Doppler Speedlog,Please Contact Us For More Details.

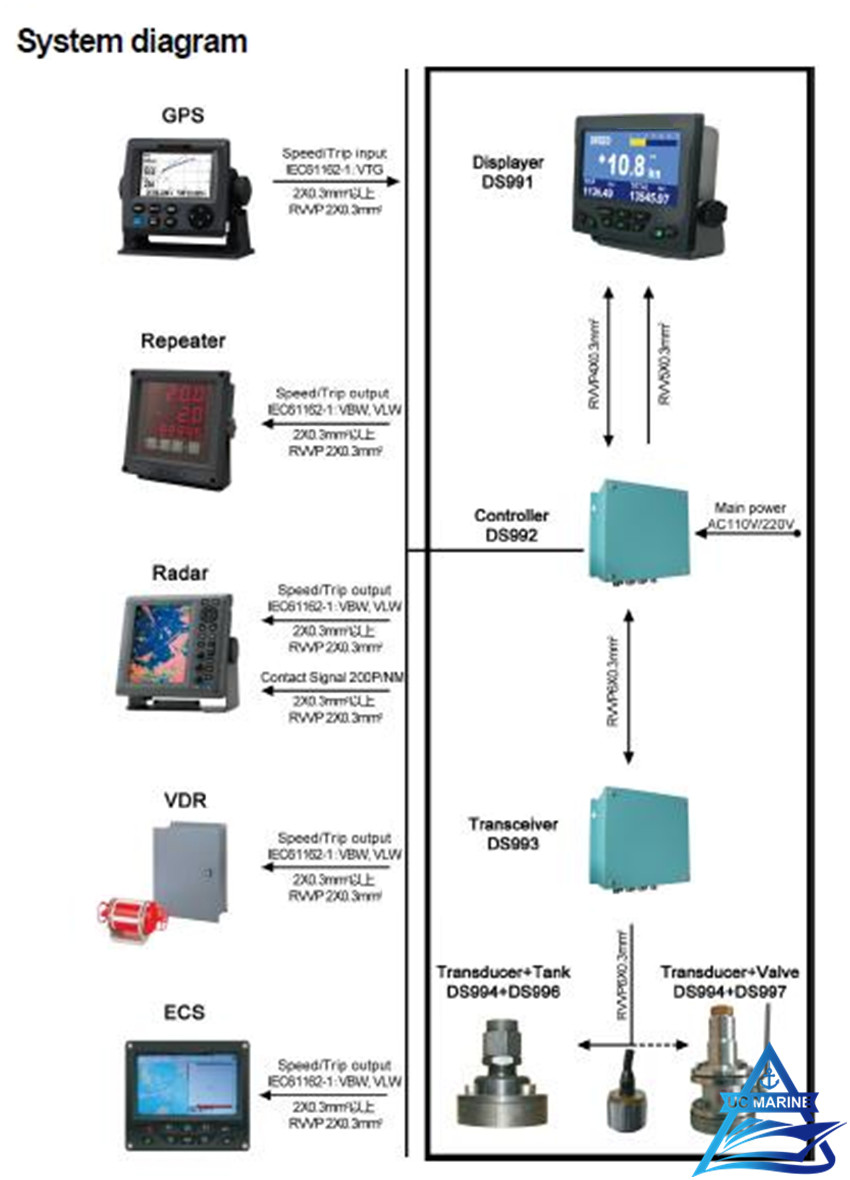

Doppler Speedlog System Diagram.jpg
