Aluminum Anode for Ballast Water Tank

  • UC Marine
  • Aluminum Anodes
  • Aluminum Alloy
  • Ballast Water Tank
  • CCS,ABS,BV etc

Product Description

Aluminum Anode for Ballast Water Tank

Aluminum zinc indium system (AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy. Aluminum alloy anode is produced in line with the implementation of GB4948-2002 aluminum zinc indium alloy sacrificial anode. if needed, CCS, BV, ABS can be provided.

Aluminum anode chemical composition type for option are as follow:

Al-Zn-In, Al-Zn-In-Cd, Al-Zn-In-Sn, Al-Zn-In-Si, Al-Zn-In-Sn-Mg, Al-Zn-In-Mg-Ti.


Specifications:

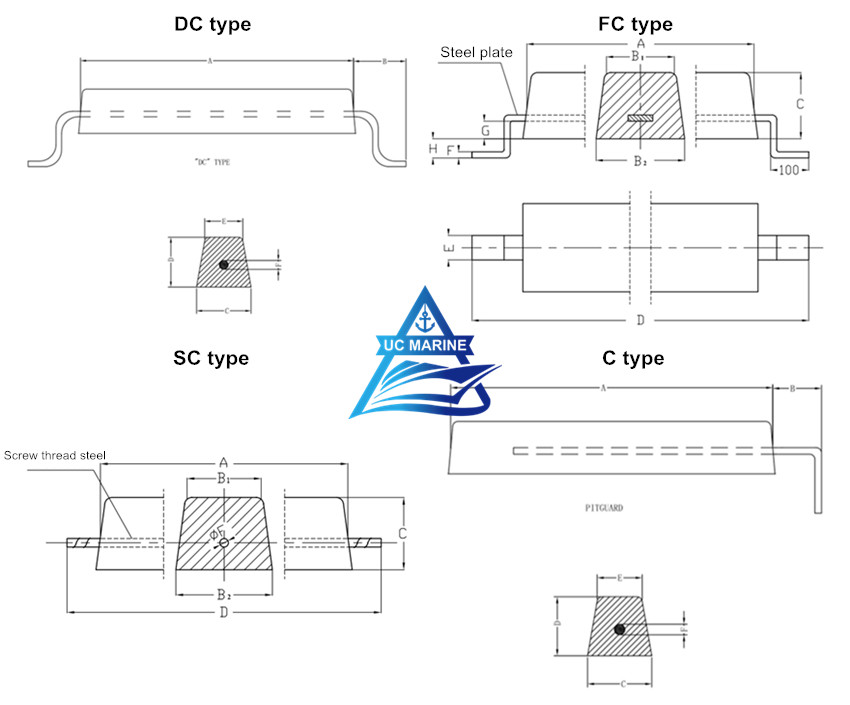

Model Specification Dimension of steel core (mm) Net weight Gross weight
A×(B1+B2)×C (mm) D E F G H (kg) (kg)
AT-1 500×(115+135)×130 800 50 6 40 60 20.5 23
AT-2 1500×(65+75)×70 1800 / 12 20 40 19.8 21.5
AT-3 500×(110+130)×120 800 50 6 40 60 18 20
AT-4 1000×(58.5+78.5)×68 1300 / 12 20 40 12 13.2
AT-5 800×(56+74)×65 1100 / 12 20 40 9 10
AT-6 1150×(48+54)×51 1450 / 12 15 35 7.6 9
AT-7 250×(80+100)×85 310 25 4 6~8 0 4.8 5
AT-8 200×(70+90)×70 260 25 4 6~8 0 2.8 3

If you are interested in aluminum anode for ballast water tank, please contact us for more details. we also supply aluminum anodes for harbor structures.

Aluminum Anode for Ballast Water Tank.jpg
