Product Description

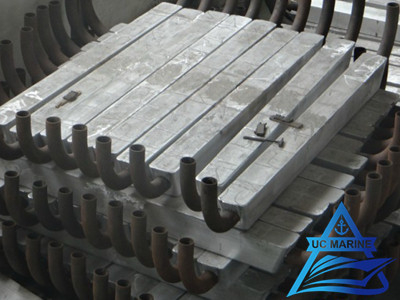

Aluminum Anodes for Harbor Structures
As usual,upper part of pile for wharf or jetty or offshore platform is with partial coating or without coating.Sizes of Anodes depends on the status of pile's coating and the design of lifespan for the system.
Specifications of aluminum anodes for harbor structures:
Model | Specification | Size of screw bar core | Size of flat bar core | Net weight | Gross weight | |||||
A×(B1+B2)×C (mm) | D | F | G | D | E | F | G | (kg) | (kg) | |
AI-5 | 1500×(148+178)×170 | 1800 | 25 | 65 | 1800 | 50 | 8 | 65 | 114 | 120 |
AI-6 | 850×(180+220)×180 | 1100 | 25 | 70 | 1100 | 60 | 8 | 70 | 80 | 85 |
AI-7 | 800×(200+280)×150 | 1050 | 25 | 55 | 1050 | 60 | 8 | 55 | 76 | 80 |
AI-8 | 700×(160+220)×180 | 950 | 22 | 70 | 950 | 60 | 8 | 70 | 68.5 | 72.5 |
AI-9 | 1250×(115+135)×130 | 1500 | 18 | 45 | 1500 | 40 | 8 | 45 | 52 | 56 |
AI-10 | 1000×(115+135)×130 | 1250 | 18 | 45 | 1250 | 40 | 8 | 45 | 42.6 | 46 |
AI-11 | 750×(115+135)×130 | 1000 | 16 | 45 | 1000 | 40 | 6 | 45 | 33 | 35 |
AI-12 | 500×(115+135)×130 | 750 | 16 | 45 | 750 | 40 | 4 | 45 | 22 | 23 |
If you are interested in aluminum anodes for harbor structures, please contact us for more details. we also supply aluminum anodes for offshore engineering.
