Product Description

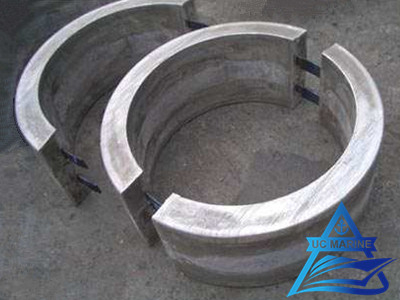

Bracelet Type Aluminum Anode
The pipes submerged in seawater are protected from corrosion using specific aluminum anodes called "bracelet" for their particular shape.
These anodes, assembled as two half-shells, fit the pipe as a bracelet and, according to the method employed to match the two half-shells, are divided into bolted anodes, welded anodes and hinged anodes. The electrical continuity between the anode body and the pipe is allowed by a steel continuity bar or by an electrical cable.
Bracelet type aluminum anodes were designed as per the standard of ISO,NACE,DNV,utilization ratio is more than 0.80.
Specifications of Bracelet Type Aluminum Anode:
| Model | Specification | Dimension of steel core (mm） | Gross weight | ||
| A×2B×C×D (mm) | E | F | G | (kg) | |
| AP-5 | 420×622×51×20 | 480 | 4 | 6 | 104 |
| AP-6 | 254×559×76×25 | 284 | 4 | 6 | 81 |
| AP-7 | 400×503×51×25 | 430 | 4 | 6 | 80 |
| AP-8 | 562×371×51×25 | 592 | 4 | 6 | 80 |
If you are interested in bracelet type aluminum anode, please contact us for more details. we also supply aluminum anode for ballast water tank.
