Cylinder Fork Type Electrical Hydraulic Steering Gear

  • UC Marine
  • Marine Deck Equipment
  • Steering Gear
  • CCS,ABS,DNV-GL
  • China

Product Description

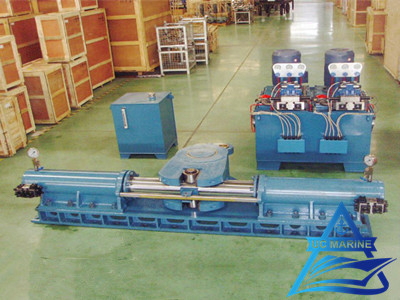

Cylinder Fork Type Electrical Hydraulic Steering Gear

It is different from piston fork type, its char-acteristic is that it had changed the piston reciprocating movement into cylinder reciprocating movement. Two ends of the piston rod are fixed on the foundation. So it not only kept the traditional advantages of piston-fork steering gear but also has the following advantages: Small volume, light weight, convenient to maintenance, especially suits to be used of all kinds of ships.


Technical Data of Electro Hydraulic Steering Gear:

ModelTorqueRudder Shifting TimeMax Steering AngleEmergency Way
DYC(KN.M)(S)(°)
DYC10-16≤12/20/2865Emergency way for river-going:
8-16KN.M: energy storge device
20-200KN.M: DC motor pump ststions
Emergency way for sea-going:
8-350KN.M Hand pump
DYC20-40≤12/20/2865
DYC50-63≤12/20/2865
DYC75-100≤12/20/2865
DYC125-160≤12/20/2865
DYC200-250≤20/2865
DYC300-350≤20/2865

If you are interested in cylinder fork type electrical hydraulic steering gear,please contact us for more details.
