Piston Fork Type Electro-hydraulic Steering Gear

  • UC Marine
  • Marine Deck Equipment
  • Steering Gear
  • CCS,ABS,DNV-GL
  • China

Product Description

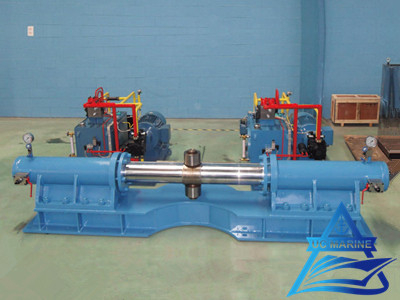

Piston Fork Type Electro-hydraulic Steering Gear

The fork-shifting rudder-pushing device is making the piston do the reciprocating movements in the cylinder, then through the fork-type tiller output. The cylinder we adopted to use V-type rudder seal ring. This rudder-pushing device has features of simple structure, reliable operation, easy maintenance and well output torque.


Technical Data of Electro Hydraulic Steering Gear:

ModelTorqueRudder Shifting TimeEmergency Way
DYA(KN.M)(S)
DYA10-16≤12/20/28Emergency way for fiver-going:
8-16KN.M:energy storage device
20-200KN.M:DC motor pump stations
Emergency way for sea-going:
8-1000KN.M Hand pump
DYA25-30≤12/20/28
DYA30-40≤12/20/28
DYA50≤12/20/28
DYA63≤12/20/28
DYA75-100≤12/20/28
DYA125-160≤12/20/28
DYA200≤12/20/28
DYA250-320≤20/28
DYA350≤20/28
DYA400-500≤28
DYA500-600≤28
DYA700≤28
DYA800≤28
DYA1000≤28

If you are interested in piston fork type electro-hydraulic steering gear,please contact us for more details.
