Product Description

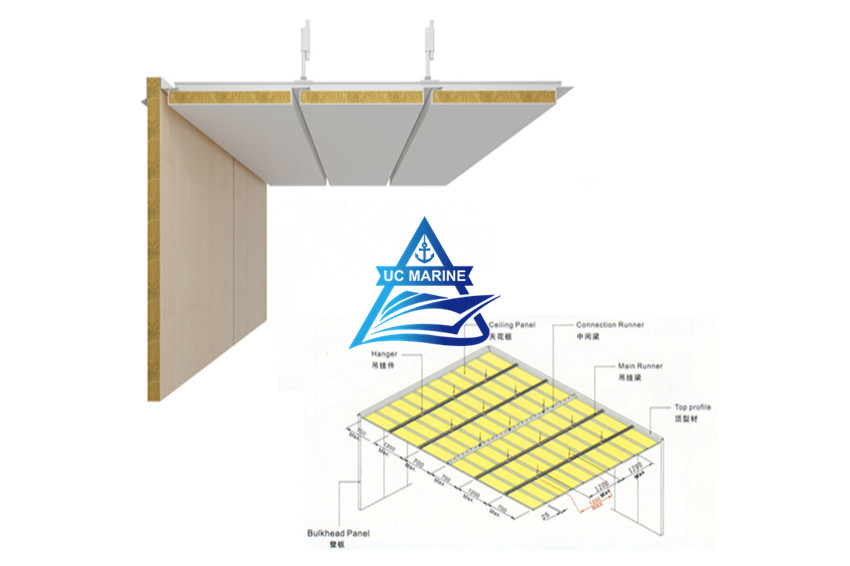

Gap Type D Composite Rock Wool Ceiling
*Material: Rock wool, PVC film or galvanized steel
*Thickness: 60mm
*Width: 300mm
*Required Length: Max.4000mm
*Fire Class: B-15
Technical Data of Composite Rock Wool Ceiling:
| Model | CLP-C6 | |
| Fire Class | B-15 | |
| Dimension | Thickness | 60mm |
| Width | 300mm | |
| Required Length | (Max 4000mm) | |
| Weight | 12.1 kg/㎡ | |
| Sound Reduction | 31dB(A) | |
| Thermal Transmittance | 0.43 Kcal/㎡h℃ | |
| Surface Finish | PVC film (150μ, low flame spread) or galvanized steel | |
| Core Material | Rock Wool 80/150kg/㎡ | |
| Tolerances | Width(-1,0), Height ±3, Thickness(-1,0) | |
If you are interested in gap type d composite rock wool ceiling, please contact us for more details. we also supply non-gap type d composite rock wool ceiling.
