UC Marine
Marine Ceiling Panel
Aluminum Honeycomb Ceiling
Aluminum Honeycomb
EC,GL,CCS,LR,ABS,BV,NK,KR etc
China
Product Description

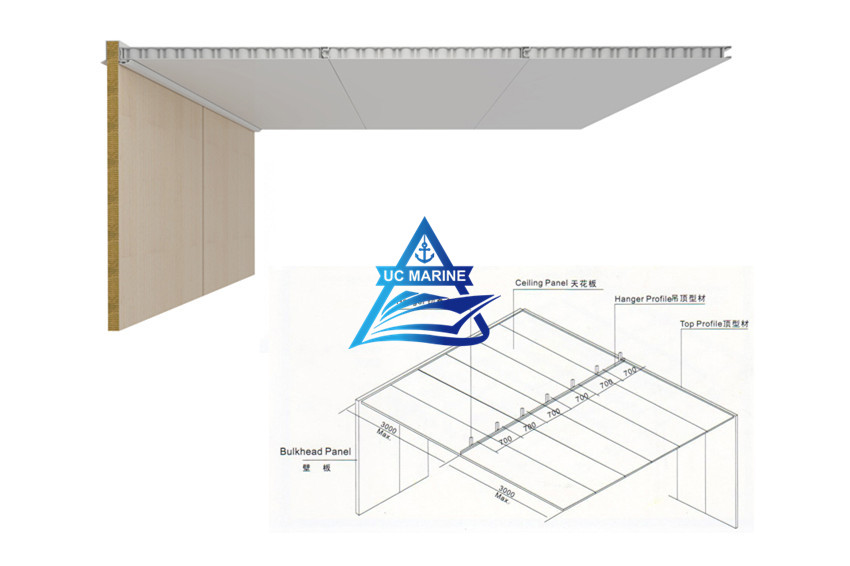

Non-Gap Type A Aluminum Honeycomb Ceiling
1.Core Material: Aluminum honeycomb
2.Surface Finish: PVC film or galvanized steel
3.Sound Reduction: 30dB(A), 29dB(A)
4.Fire Class: B-0
Technical Data of Aluminum Honeycomb Ceiling:
| Model | CLP-C9 | CLP-C10 | |
| Fire Class | B-0 | B-0 | |
| Dimension | Thickness | 30mm | 25mm |
| Width | 550mm | 550mm | |
| Required Length | (Max 3000mm) | (Max 3000mm) | |
| Weight | 12.3 kg/㎡ | 11.8 kg/㎡ | |
| Sound Reduction | 30dB(A) | 29dB(A) | |
| Thermal Transmittance | 3.25 Kcal/㎡h·â„ƒ | 3.25 Kcal/㎡h·â„ƒ | |
| Surface Finish | PVC film (150μ, low flame spread) or galvanized steel | ||
| Core Material | Aluminum honeycomb | ||
| Tolerances | Width(-1,0), Height ±3, Thickness(-1,0) | ||
If you are interested in non-gap type a aluminum honeycomb ceiling, please contact us for more details. we also supply non-gap type a composite rock wool ceiling.
