UC Marine
Marine Ceiling Panel
Composite Glass Wool Ceiling
Composite Glass Wool
EC,GL,CCS,LR,ABS,BV,NK,KR etc
China
Product Description

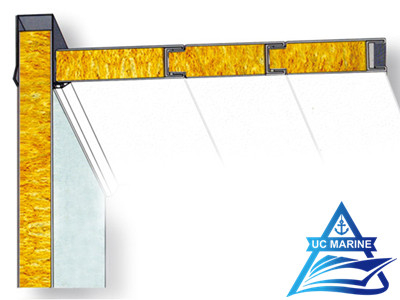

Type A Continuous Composite Glass Wool Ceiling
*Core Material: Glass wool
*Core Material: PVC film or galvanized steel
*Fire Class: B-0
*Sound Reduction: 30dB(A)
Technical Data of Composite Glass Wool Ceiling:
| Model | JCP-C3B |
| Fire Class | B-0 |
| Dimension | Width 600/550mm |
| Required Length (Max 3000mm) | |
| Weight | 10.3 kg/㎡ |
| Sound Reduction | 30dB(A) |
| Thermal Transmittance | 0.92 Kcal/㎡h·â„ƒ |
| Surface Finish | PVC film (150μ, low flame spread) or galvanized steel |
| Core Material | Glass wool |
| Tolerances | Width(-1,0), Height ±3, Thickness(-1,0) |
If you are interested in type a continuous composite glass wool ceiling, please contact us for more details. we also supply non-gap type a composite rock wool ceiling.
