Inclined Single Chute Passage Marine Evacuation System

  • UC Marine
  • Marine Evacuation System
  • Inclined Single Chute Passage
  • CCS
  • China

Product Description

Inclined Single Chute Passage Marine Evacuation System

The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.

*Specification: 6、7、8、9、10、11 and 12 meters

*Approval: CCS


Approval standard:

1. MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances

2. MSC.48(66)International Life-saving Appliance Code


Marine Evacuation System Maximum Stowage height Maximum assigned Capacity on the platform Weight  Dimension of container
Model (meter) (person) (person) (kg) (mm)
HN-MES-D6.0-315 6 315 63 1280 2000×1050×1800
HN-MES-D7.0-315 7 1380 2000×1050×1800
HN-MES-D8.0-315 8 1460 2000×1100×1800
HN-MES-D9.0-315 9 1680 2200×1150×1850
HN-MES-D10.0-315 10 1800 2200×1150×1900
HN-MES-D11.0-315 11 1860 2240×1200×2000
HN-MES-D12.0-315 12 1900 2300×1200×2000

If you are interested in inclined single chute passage marine evacuation system, please contact us for more details.

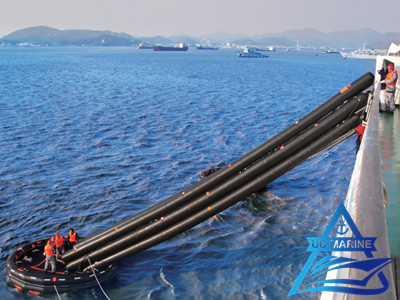

Inclined Single Chute Passage Marine Evacuation System 01.jpg


Inclined Single Chute Passage Marine Evacuation System 02.jpg
