Single Chute Vertical Passage Marine Evacuation System

  • UC Marine
  • Marine Evacuation System
  • Single Chute Vertical Passage
  • CCS
  • China

Product Description

Single Chute Vertical Passage Marine Evacuation System

The Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the system will be formed into the sea automatically.

Specification: 10、11、12、13、14、15、16、17、18、19、20、21 and 22 meters

Approval:CCS


Approval standard:

1. MSC.81(70)Revised Recommendation on Testing of Life-saving Appliances

2. MSC.48(66)International Life-saving Appliance Code

Marine Evacuation System Maximum Stowage height Maximum assigned  Capacity on the platform Weight Dimension of container
Model (meter) (person) (person) (kg) (mm)
HN-MES-VP10.0-300 10 300 60 1360 2300×1600×2200
HN-MES-VP11.0-300 11 1370
HN-MES-VP12.0-300 12 1380
HN-MES-VP13.0-300 13 1390
HN-MES-VP14.0-300 14 1400
HN-MES-VP15.0-300 15 1410
HN-MES-VP16.0-300 16 1420
HN-MES-VP17.0-300 17 1430
HN-MES-VP18.0-300 18 1440
HN-MES-VP19.0-300 19 1450
HN-MES-VP20.0-300 20 1460
HN-MES-VP21.0-300 21 1470
HN-MES-VP22.0-300 22 1480

If you are interested in single chute vertical passage marine evacuation system, please contact us for more details.

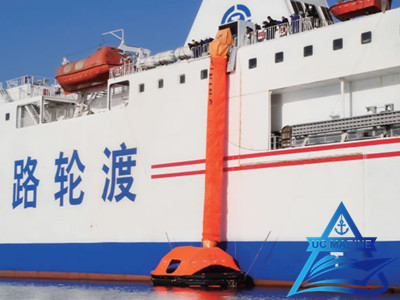

Single Chute Vertical Passage Marine Evacuation System 01.jpg


Single Chute Vertical Passage Marine Evacuation System 02.jpg
