TJCZKH202
UC Marine
Brass
DIN89263
CCS,CE
China
Availability: | |
---|---|
Product Description

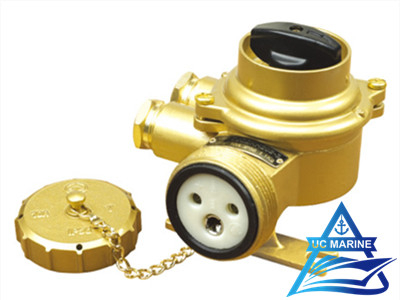

Marine Brass Socket with Switch TJCZKH202
Marine brass socket with switch shell is made of high quality brass casting, it has the feature of fine sealing function and fine electric function.
*Material: Brass
*Protection class: IP56
*Applicable cable: Ф8~Ф15mm
*Production authentication: Approved by CCS and CE
*Adopt standard: DIN89263 (CB3412-92)
Technical Data of Marine Brass Socket:
Common cable type | TJCZKH202-1 | TJCZKH202-2 | TJCZKH202-3 | TJCZKH202-4 | TJCZKH202-5 |
Shield cable type | TJCZKH212-1 | TJCZKH212-2 | TJCZKH212-3 | TJCZKH212-4 | TJCZKH212-5 |
Rated voltage | 24V | 110V | 220V | 380V/440V | 380V/440V |
Rated current | 10A | 10A | 10A | 10A | 10A |
Weight | 1.08kg | 1.1kg | 1.1kg | 1.1kg | 1.15kg |
If you are interested in marine brass socket with switch TJCZKH202, please contact us for more details.
