NMEA0183 Tester

  • UC Marine
  • Navigation Auxiliary Equipment
  • Tester
  • China

Product Description

NMEA0183 Tester

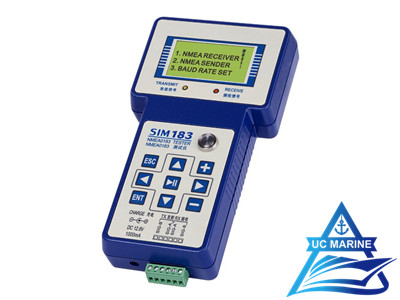

NMEA0183 tester SIM183 is a handheld portable tester for testing transmit-received NMEA0183 signals, with lithium battery for 9-hour continuous working. SIM183 can receive and display NMEA0183 signal from an external device, and test baud rate and peak value of the received signal. It also can send the selected NMEA0183 sentence (optional 142 kind of NMEA0183 sentences) and the baud rate of the transmitted signal can be set. In practical operation, NMEA0183 tester SIM183 can be applied for the installation, debugging and trouble removal.

ItemSpecification
Display128×64 Dot.matrix LCD
Test Baud Range2400,4800,9600,19200,38400 bps
Recharge Li Battery12.6VDC 1500mAh
Battery Charger12.6V/350mA
Working Temperature -15 ~ +55℃
WaterproofIP23
Dimension235×135×55mm
Weight(with Battery)0.6kg

If You Are Interested In NMEA0183 Tester,Please Contact Us For More Details.
