Product Description

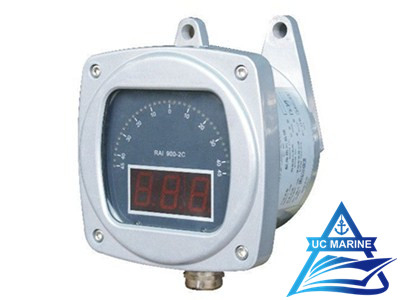

RAI900-2C Single Waterproof Indicator
RAI900 rudder angle indicating system is utilized to accurately and opportunely exhibit the rudder angle signals at the specified locations, such as the navigating bridge and wheelhouse. The system can perform the following functions: collection, digitization, transmission, display (digital display and light-bar analog display) and control (for example, control of display brightness) of rudder angle signals.
| Project | Data |
| System rudder Angle display error | not more than 1 ° (relative to the actual rudder Angle) |
| Power supply | DC24V |
| Measurement range of rudder angle | －50°～＋50° |
| Rudder angle sampling resolution | 0.1°(12-digit A/D converter) |
| Rudder angle data transmission frequency | 5 times/s |
| Default sampling step for linear compensation | 5° |
| Input data port | RS-422 standard |
| Format of input data | in compliance with IEC-61162 |
| Ambient temperature | －15℃～＋55℃ |
| Humidity | 93％±2％(ambient temperature 25℃～40℃) |
If You Are Interested In RAI900-2C Single Waterproof Indicator,Please Contact Us For More Details.
