Type A Composite Rock Wool Wall Panel

  • UC Marine
  • Marine Wall Panel
  • Composite Rock Wool Wall Panel
  • Composite Rock Wool
  • China

Product Description

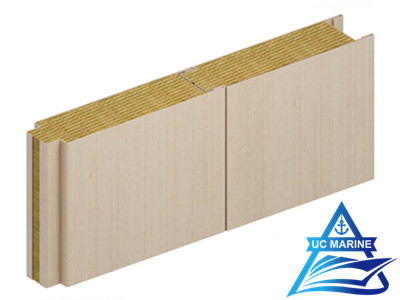

Type A Composite Rock Wool Wall Panel

1.Surface Finish: PVC film (150μ, low flame spread) or galvanized steel

2.Core Material: rock wool

3.Fire Class: B-15

4.Thickness: 50mm, 30mm, 25mm

5.Width: 550mm

6.Customizmd length: max 3500mm

7.Certificates: CCS, BV, KR, DNV, NK, RINA, etc.


Specification:

ModelCLP-P1CLP-L1CLP-L3
Fire ClassB-15B-15B-15
DimensionThickness50mm30mm25mm
Width550mm550mm550mm
Length(Max 3000mm)(Max 3000mm)(Max 3000mm)
Weight18.4 kg/㎡15.2 kg/㎡14.5 kg/㎡
Sound Reduction33dB(A)31dB(A)30dB
Thermal Transmittance0.68 Kcal/㎡h·℃1.13Kcal/㎡h·℃1.36 Kcal/㎡h·℃
Surface FinishPVC film (150μ, low flame spread) or galvanized steel
Core MaterialRock Wool 150kg/㎡
TolerancesWidth(-1,0), Height ±3, Thickness(-1,0)

If you are interested in type a composite rock wool wall panel, please contact us for more details. we also supply type a aluminum wall panel.
