Type C Composite Rock Wool Wall Panel

  • UC Marine
  • Marine Wall Panel
  • Composite Rock Wool Wall Panel
  • Composite Rock Wool
  • China

Product Description

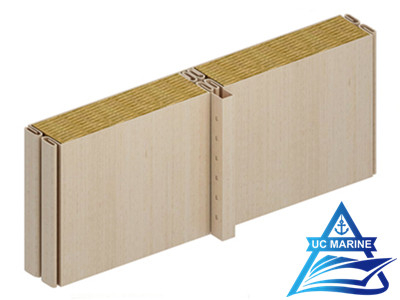

Type C Composite Rock Wool Wall Panel

1.Model: CLP-P2, CLP-L2, CLP-L4

2.Fire Class: B-15, B-0

3.Material: PVC film (150μ, low flame spread) or galvanized steel, rock wool

4.Sound Reduction: 33dB, 31dB


Specification:

ModelCLP-P2CLP-L2CLP-L4
Fire ClassB-15B-15B-0
DimensionThickness50mm30mm25mm
Width550mm550mm550mm
Length(Max 3000mm)(Max 3000mm)(Max 3000mm)
Weight17.9 kg/㎡16 kg/㎡14.78 kg/㎡
Sound Reduction33dB31dB31dB
Thermal Transmittance0.68 Kcal/㎡h·℃1.10Kcal/㎡h·℃1.13 Kcal/㎡h·℃
Surface FinishPVC film (150μ, low flame spread) or galvanized steel
Core MaterialRock Wool 150kg/㎡
TolerancesWidth(-1,0), Height ±3, Thickness(-1,0)

If you are interested in type c composite rock wool wall panel, please contact us for more details. we also supply type c aluminum wall panel.
