UC Marine
Marine Wall Panel
Aluminum Wall Panel
PVC Film or Galvanized Steel, Aluminum Honeycomb
China
Product Description

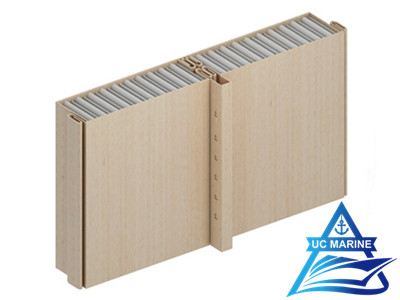

Type C Aluminum Wall Panel
1.Model: CLP-P6, CLP-L9, CLP-L10
2.Fire Class: B-15, B-0
3.Material: PVC film (150μ, low flame spread) or galvanized steel, aluminum honeycomb
4.Thickness: 50mm, 30mm, 25mm
5.Width: 550mm
6.Customizmd length: max 3500mm
Specification:
| Model | CLP-P6 | CLP-L9 | CLP-L10 | |
| Fire Class | B-15 | B-0 | B-0 | |
| Dimension | Thickness | 50mm | 30mm | 25mm |
| Width | 550mm | 550mm | 550mm | |
| Length | (Max 3500mm) | (Max 3500mm) | (Max 3500mm) | |
| Weight | 17.8 kg/㎡ | 12.1 kg/㎡ | 11.4kg/㎡ | |
| Sound Reduction | 33dB | 30dB | 29dB | |
| Thermal Transmittance | 2.25Kcal/㎡h·℃ | 3.25Kcal/㎡h·℃ | 3.35 Kcal/㎡h·℃ | |
| Surface Finish | PVC film (150μ, low flame spread) or galvanized steel | |||
| Core Material | Aluminum Honeycomb | |||
| Tolerances | Width(-1,0), Height ±3, Thickness(-1,0) | |||
If you are interested in type c aluminum wall panel, please contact us for more details. we also supply type c composite rock wool wall panel.
