UC Marine
Marine Anchor Windlass
Electric Combined Windlass And Mooring Winch
CCS,ABS,NK,LR,DNV,BV,RINA,BKI etc
China
Product Description

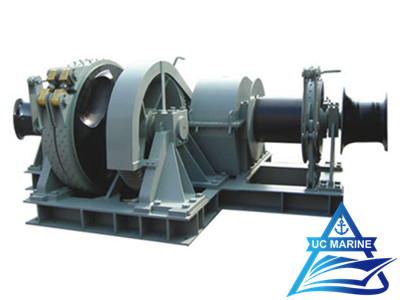

Biaxial Electric Combined Windlass And Mooring Winch
| Windlass Type | Chain Dia. | Working Load | Over Loading | Loading Support | Nominal Speed | Drum Load | Nominal Speed | Cable Capacity | Mooring Line Load | |||
| (mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | m/min | m | Kn | |
| DMA-46 | 46 | 89.9 | 100.5 | 139.4 | 150.8 | 526 | 756 | 9 | 60/75 | 15 | Ф24x200 | 50 |
| DMA-48 | 48 | 97.9 | 109.4 | 146.9 | 164.1 | 570 | 815 | 9 | 60/80 | 15 | Ф24x200 | 50 |
| DMA-50 | 50 | 106.3 | 118.8 | 159.5 | 178.2 | 617 | 882 | 9 | 60/80 | 15 | Ф24x200 | 50 |
| DMA-52 | 52 | 114.9 | 128.4 | 172.4 | 192.6 | 666 | 950 | 9 | 80/100 | 15 | Ф28x200 | 60 |
| DMA-54 | 54 | 123.9 | 138.5 | 185.9 | 207.8 | 715 | 1021 | 9 | 80/100 | 15 | Ф28x200 | 60 |
| DMA-56 | 56 | 133.3 | 149 | 200 | 223.5 | 770 | 1094 | 9 | 80/100 | 15 | Ф28x220 | 60 |
| DMA-58 | 58 | 143 | 159.8 | 214.5 | 239.7 | 815 | 1170 | 9 | 80/100 | 15 | Ф28x220 | 60 |
| DMA-60 | 60 | 153 | 171 | 229.5 | 256.5 | 873 | 1247 | 9 | 100/120 | 15 | Ф30x220 | 80 |
| DMA-62 | 62 | 163.4 | 182.6 | 245.1 | 273.9 | 927 | 1323 | 9 | 100/120 | 15 | Ф30x240 | 80 |
| DMA-64 | 64 | 174.1 | 194.6 | 261.2 | 291.9 | 986 | 1409 | 9 | 100/120 | 15 | Ф30x240 | 80 |
| DMA-66 | 66 | 185.1 | 206.9 | 277.7 | 310.4 | 1040 | 1485 | 9 | 120/140 | 15 | Ф32x240 | 100 |
| DMA-68 | 68 | 196.5 | 219.6 | 294.8 | 329.4 | 1103 | 1575 | 9 | 120/140 | 15 | Ф32x260 | 100 |
| DMA-70 | 70 | 208.3 | 232.8 | 312.5 | 349.2 | 1161 | 1661 | 9 | 120/140 | 15 | Ф32x260 | 100 |
| DMA-73 | 73 | 226.5 | 253.1 | 339.8 | 379.7 | 1255 | 1795 | 9 | 135/150 | 15 | Ф34x260 | 125 |
| DMA-76 | 76 | 245.5 | 274.4 | 368.3 | 411.6 | 1355 | 1935 | 9 | 135/150 | 15 | Ф34x280 | 125 |
| DMA-78 | 78 | 258.6 | 289 | 387.9 | 433.5 | 1422 | 2025 | 9 | 135/160 | 15 | Ф36x280 | 125 |
| DMA-81 | 81 | 278.8 | 311.7 | 418.2 | 467.5 | 1521 | 2196 | 9 | 150/180 | 15 | Ф36x300 | 125 |
| DMA-84 | 84 | 300 | 335.2 | 450 | 502.8 | 1625 | 2322 | 9 | 150/180 | 15 | Ф36x300 | 125 |
If you are interested in Biaxial Electric Combined Windlass And Mooring Winch,please contact us for more details.
