UC Marine
Marine Anchor Windlass
Diesel Anchor Windlass
CCS,ABS,NK,LR,DNV,BV,RINA,BKI etc
China
Product Description

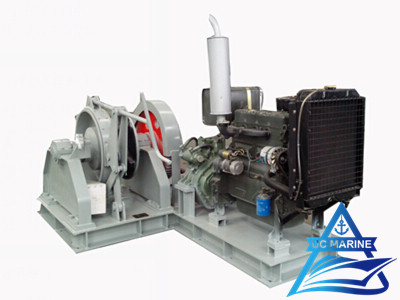

Diesel Anchor Windlass
| Model | Chain Dia. | Speed | Working Load | Support Load | Engine Model | Gearbox Model |
| mm | m/min | KN | KN | |||
| Φ17.5 | 17.5 | ≥9 | 9.5 | 38.5 | S195 | 3ZF06A |
| Φ19/22 | 19/22 | ≥9 | 11.73/15.73 | 42/56 | S195 | 3ZF06A |
| Φ24/25 | 24/25 | ≥9 | 18.72/20.31 | 66.4/72 | S1100 | 3ZF06A |
| Φ26 | 26 | ≥9 | 21.39 | 77.8 | S1100 | 3ZF06A |
| Φ28/30 | 28/30 | ≥9 | 25.48/29.25 | 89.8/102.6 | S1115 | 3ZF16A |
| Φ32 | 32 | ≥9 | 33.28 | 116.6 | S2100 | 3ZF16A |
| Φ34 | 34 | ≥9 | 37.57 | 131 | S2100 | 3ZF16A |
| Φ36/38 | 36/38 | ≥9 | 42.12/46.9 | 146.4/162.6 | S4100 | 40A |
| Φ40/42 | 40/42 | ≥9 | 68/74.97 | 403/441.5 | S4100 | 40A |
| Φ44/46 | 44/46 | ≥9 | 82.28/89.93 | 486/526.5 | S4135 | 40A |
If you are interested in Diesel Anchor Windlass,please contact us for more details.
