UC Marine
Marine Anchor Windlass
Stainless Steel Windlass
CCS,ZY,ZC
China
Product Description

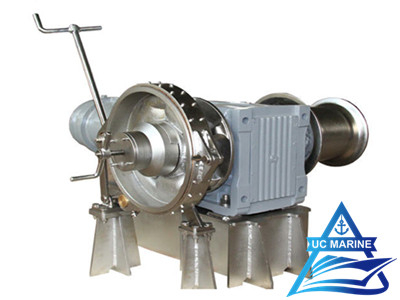

Light-duty Stainless Steel Windlass
Light-duty stainless steel windlass applying in steel official boats,law enforcement boats,fishery boats,yacht and small leisure boats, our products have achieved CCS,ZY,ZC certifications.
| Windlass Type | Chain AM | Chain Dia. | Rated Load | Holding Load | Working Speed | Motor Power (KW) | |
| (mm) | (KN) | (KN) | (m/min) | Electric | Hydraulic | ||
| QDMA12.5 | 2 | 12.5 | 6.6 | 41 | 14 | 2.4/1.5 | 4 |
| QDMA14 | 2 | 14 | 8.3 | 52 | 12 | 2.4/1.5 | 4 |
| QDMA16 | 2 | 16 | 10.9 | 67 | 12 | 3/1.2 | 5.5 |
| QDMA17.5 | 2 | 17.5 | 13 | 80 | 10 | 3/1.2 | 5.5 |
| QDMA19 | 2 | 19 | 15.3 | 95 | 12 | 4.3/1.7 | 5.5 |
| QDMA20.5 | 2 | 20.5 | 17.9 | 110 | 10 | 4.3/1.7 | 7.5 |
| QDMA22 | 2 | 22 | 20.6 | 126 | 12 | 6/2.5 | 7.5 |
| QDMA24 | 2 | 24 | 24.5 | 149 | 10 | 6/2.5 | 11 |
| QDMA26 | 2 | 26 | 28.7 | 175 | 12 | 8.5/3.5 | 11 |
| QDMA28 | 2 | 28 | 33.3 | 202 | 10 | 8.5/3.5 | 15 |
If you are interested in Light-duty Stainless Steel Windlass,please contact us for more details.
