CY-2 type 15ppm Bilge Water Alarm

  • UC Marine
  • Bilge Monitoring
  • 15PPM Bilge Alarm
  • Marine
  • IMO MEPC.107 (49)
  • CCS
  • China

Product Description

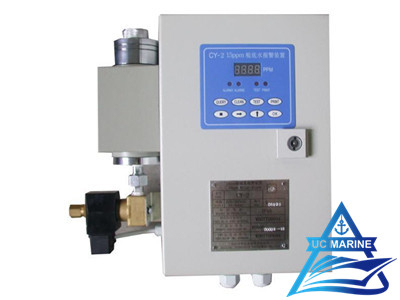

CY-2 type 15ppm Bilge Water Alarm

CY-2 15ppm bilge water alarm suitable for continuous monitoring of discharging of bilge oil waste water and it has the function of 15ppm overrun alarm system and controlling system for discharge waste water. It uses as a set device with water separator for oil waster water of bilge.

CY-2 15ppm bilge water alarm is approved by China Classification Society and its performance index meets the standard of MEPC.107(49)which set by International Marine Environment Protection Committee.


Features of 15ppm Bilge Water Alarm:

1. Using the most advanced multi-band infrared measuring principle and the micro-processing technology, fast response and high accuracy measurement;

2. The overall use of anti-electromagnetic interference design to overcome the use of environmental impact on equipment to improve system stability and equipment reliability;

3. Real-time display of concentration of oil and working state of the system;

4. Real-time recording of the police state and automatically store data, historical data at any time to print;

5. Measurement of room to facilitate maintenance and cleaning, simple operation;

6. With the work of equipment condition monitoring functions in equipment failure, maintenance or replacement of automatic control over when the discharge of sewage.


Technical Data of 15ppm Bilge Water Alarm:

ModelCY-2
Measuring range0-30ppm (display range 0-80ppm)
Measurement precision(15ppm alarm) ± 5ppm (meet the IMO standard)
Display typeLED numeric display
Alarm indication4 red LED
Alarm relay2-way
Rated capacity of relay contact250VAC 3A (non-emotional)
Response time≤ 5 seconds
Output signal4-20mA
Environment temperature0 °C - 55 °C
Relative humidity≤ 93%
Sample liquid temperature1 - 55 °C
Sample liquid pressure0.1-0.6MPa
Sample liquid flow0.1-4L / min
Protection classIP55
Main power supply220/110VAC 50Hz/60Hz
Power Consumption≤ 20VA
Main power supply220/110VAC 50Hz/60Hz
Power Consumption≤ 20VA
Overall dimension400mm×300mm×160mm

If you are interested in CY-2 15ppm bilge water alarm, please contact us for more details.
