OMD-2008 type 15ppm Bilge Alarm

  • OMD-2008
  • Bilge Monitoring
  • 15PPM Bilge Alarm
  • Marine
  • IMO MEPC.107 (49)

Product Description

OMD-2008 type 15ppm Bilge Alarm

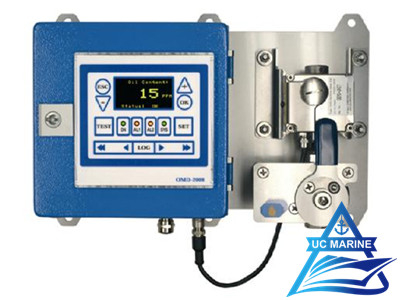

The performance and specifications of the OMD-2008 comply with IMO Resolution MEPC.107 (49).  The OMD-2008 Bilge Alarm Monitor is made up of 2 main components: the Computer Unit and the Measuring Cell.  The Computer Unit contains the display PCB with the data logger and the terminals for external connections.  The Measuring Cell contains optics and electronics and is connected to the computer unit via a data cable.  The Computer Unit and Measuring Cell are mounted onto a stainless steel support that holds the Valve Assembly. The valve’s handle controls sample water flow and clean water usage. Separate mounting plates for the Computer Unit & Measuring Cell with Valve are available upon request.


Technical Data of OMD-2008 15ppm Bilge Alarm:

PropertyValue
Range (measurement & indication)0 - 30 ppm, Trend up to 50ppm
Range (IMO specification)0 - 15 ppm (according IMO regulations)
Accuracybetter than IMO MEPC.107(49)
Electrical power supply24V - 240V, AC or DC, Automatic Voltage Selection
Electrical power consumption< 10 VA
SampleOily water from separator outlet, 0,1 - 4 l/min
Sample temperature range+1°C  to +65°C
Sample connectionsR 1/4" Female
Alarm 1 & 2 Set Points1 - 15ppm (independently adjustable)
Alarm 1 operating delay for annunciation1 - 540 sec
Alarm 2 operating delay for control 1 - 10 sec
Alarm contacts2 independently adjustable switchover contacts
Alarm contact operation modeDe-energized in Alarm State
Alarm contact ratings3A, 240V each
Alarm output0-20 mA or 4-20 mA, for 0-30ppm reversible, ext. Load<150Ω
DisplayGraphic Display
Ambient temperature+1°C to +55°C
Class of protectionIP 65
Dimension360 x 240 x 100 mm (WxHxD)
Weight5,4 kgs

If you are interested in OMD- 2008 type 15ppm bilge alarm, please contact us for more details.
