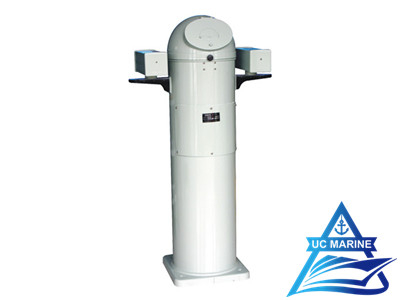

CPL-165 Vertical Magnetic Compass

  • UC Marine
  • Marine Compass
  • Magnetic Compass
  • CCS,ZY
  • China

Product Description

CPL-165 Vertical Magnetic Compass

CPL-165vertical Magnetic Compass is a sort of class A transparent liquid magnetic compass. It is designed and manufactured in accordance with the national standard GB/T 14108-2011 (General Technical Terms of Marine Magnetic Compass Class A ). The magnetic compass is suitable for the large and middle vessels acting as standard compass or steering compass and is used for measuring azimuth and indicating course heading. The product has the advantages of high precision、convenient correcting difference 、steady performance and legible lighting etc.


Main technical parameters:

CPL-165 Vertical Magnetic Compass
ProjectData
Dial DiameterΦ165mm
Dial graduation0°~360° 1°for each grid
Using temperature-25℃~+60℃
ndicating deviation      (H=35μT,T=20±3℃)≤0.5°
Half period(H=35μT,T=20±3℃)≥8.62 S
Friction deviation(H=35μT,T=20±3℃)≤0.09°
Main semicircle self heterodyne correcting energy1°~45°
Secondary semicircle self heterodyne correcting energy1°~6°(magnetic inclination Q=45°)
Quadrant self heterodyne correcting energy0.5°~10°
Inclining self heterodyne correcting energy-75~+75μT
Lighting power supplyAC 220V,DC 24V
Outline Dimension720×430×1200mm
Diameter of mounting holesPitchrow 420 ApertureΦ16
Weight33kg

If You Are Interested In CPL-165 Vertical Magnetic Compass,Please Contact Us For More Details.
