Product Description

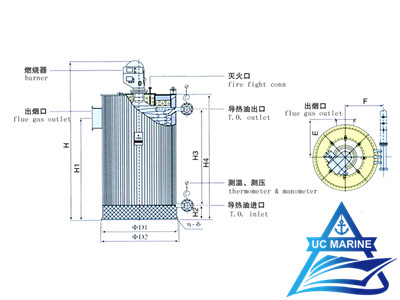

QXC Type Oil-fired Vertical Thermal Fluid Heater
| Type and specs | Heating power | Thermal fluid circulation | Working pressure | Dimensions (mm) | Weight | |||||||||
| (kw) | (M3/h) | (Mpa) | H | H1 | H2 | H3 | H4 | ï¿ D1 | ï¿ D2 | E | F | ∩-ï¿ | (kg) | |
| QXC-10L | 120 | 20~30 | 0.7 | 2315 | 1595 | 200 | 1095 | 1575 | 1280 | 1320 | 800 | 800 | 4-ï¿ 22 | 1860 |
| QXC-30L | 350 | 20~35 | 0.7 | 3020 | 1920 | 200 | 1800 | 2280 | 1280 | 1320 | 800 | 800 | 4-ï¿ 22 | 1950 |
| QXC-50L | 600 | 35~70 | 0.7 | 3200 | 2032 | 262 | 1850 | 2460 | 1600 | 1680 | 980 | 980 | 4-ï¿ 22 | 3400 |
| QXC-75L | 900 | 45~85 | 0.7 | 3452 | 2154 | 300 | 2000 | 2612 | 1700 | 1760 | 980 | 980 | 4-ï¿ 22 | 4220 |
| QXC-100L | 1200 | 65~100 | 0.7 | 3690 | 2370 | 300 | 2220 | 2880 | 1750 | 1800 | 1100 | 1100 | 4-ï¿ 22 | 4940 |
| QXC-125L | 1500 | 80~100 | 0.7 | 4050 | 2730 | 300 | 2600 | 3275 | 1750 | 1800 | 1100 | 1100 | 4-ï¿ 22 | 5200 |
| QXC-150L | 1800 | 90~140 | 0.7 | 4370 | 3050 | 300 | 2900 | 3560 | 1750 | 1800 | 1100 | 1100 | 4-ï¿ 22 | 5730 |
| QXC-200L | 2400 | 120~160 | 0.7 | 4550 | 3112 | 300 | 2960 | 3720 | 2290 | 2350 | 1450 | 1450 | 4-ï¿ 22 | 8800 |
| QXC-250L | 3000 | 140~180 | 0.7 | 5152 | 3712 | 300 | 3560 | 4350 | 2290 | 2350 | 1450 | 1450 | 4-ï¿ 22 | 9870 |
| QXC-300 | 3500 | ~200 | 0.7 | 5652 | 4212 | 300 | 4060 | 4280 | 2420 | 2480 | 1500 | 1500 | 4-ï¿ 22 | 11370 |
Note:
1.Dimensions and orientation of boiler are adapted to customer's need.
2.The data in the lable is only for reference and subject to be change without notice.
3.The types in the lable are a part of our products. Please contact us if you need other types.
If You Are Interested In QXC Type Oil-fired Vertical Thermal Fluid Heater,Please Contact Us For More Details.
