Product Description

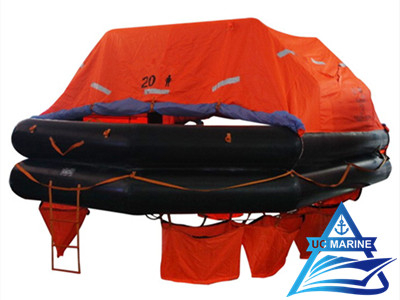

SOLAS Approved Throw-overboard Inflatable Liferaft
Inflation method:
After throw over from ship,the liferaft can be inflated and opened automatically.If the ship sinks very fast and the life-raft can not be throw over,the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically.
Technical Data of Throw-overboard Inflatable Liferaft:
| Model | ATOB-20 | ATOB-25 | ATOB-30 | ATOB-35 | |
| Shape | Rectangular octagon | Rectangular octagon | |||
| Capacity (Persons) | 20 | 25 | 30 | 35 | |
| Dimension (L×W×H) | 4304×2974×1600 | 4894×3194×1650 | 5384×3414×1700 | 5899×3568×1750 | |
| Cylinder | 6L×2 | 7.5L×2 | 9L×2 | 12L×2 | |
| Container dimension (mm) | SOLAS A PACK (a×b) | 1435×Ø720 | 1470×Ø735 | 1700×Ø795 | |
| SOLAS B PACK (a×b) | 1335×Ø680 | 1435×Ø720 | 1470×Ø735 | ||
| Packaging dimension (mm) | SOLAS A PACK (c×d×e) | 1560×790×780 | 1540×805×790 | 1780×855×880 | |
| SOLAS B PACK (c×d×e) | 1410×750×730 | 1510×790×780 | 1540×805×790 | ||
| Required bollard pull (KN) | For 2knot speed | 0.8 | 1 | 1.1 | 1.3 |
| For 3knot speed | 1.8 | 1.85 | 2.1 | 2.4 | |
| Weight (kg) | ≤160 | ≤185 | ≤205 | ≤230 | |
If you are interested in solas approved throw-overboard inflatable liferaft, please contact us for more details.
