Self-Righting Inflatable Life Raft

  • UC Marine
  • Life Raft
  • Commerce
  • Rubber
  • SOLAS standard
  • CCS / GL / ABS / NK

Product Description

Self-Righting Inflatable Life Raft

*Suitable for installing in the vessels sailing on international voyages.

*Type: ASR-25/50/100.

*It meets the China MSA-“ Regulations for the Statutory Surveys of Ships and offshore Installations—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it′s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),LSA,MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).

*Max. Storage Height: 18~36m

*Equipment Outfit: SOLAS A \B PACK

*Certificates:CCS,GL,ABS,NK.


Technical Data of Inflatable Life Raft:

Model  ASR-25 ASR-50 ASR-100
Shape Rectangular octagon Rectangular dodecagon dodecagon
Capacity (Persons) 25 50 100
Dimension (L×W×H) 5300×3130×2350 7309×4280×3050 10891×5380×3550
Cylinder 12L×2 14L×2,18L×1 22L×5
Container dimension
(mm)
SOLAS A PACK
(a×b)
1700×Ø765 1890×Ø805 2400×Ø1050
SOLAS B PACK
(a×b)
1470×Ø735 1700×Ø795 Ø805×1890
Packaging dimension
(mm)
SOLAS A PACK
(c×d×e)
1780×855×880 1950×865×910 2460×1110×1160
SOLAS B PACK
(c×d×e)
1540×805×790 1780×855×880 1950×865×910
Required bollard pull
(KN)
For 2knot speed 1.52 1.85 2.58
For 3knot speed 2.45 3.86 4.05
Weight (kg) ≦215 ≦320 ≦800

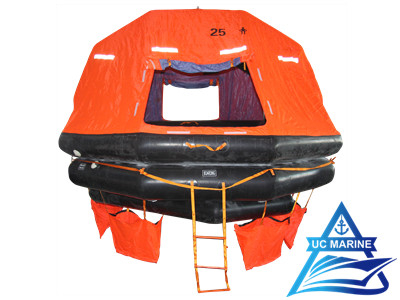

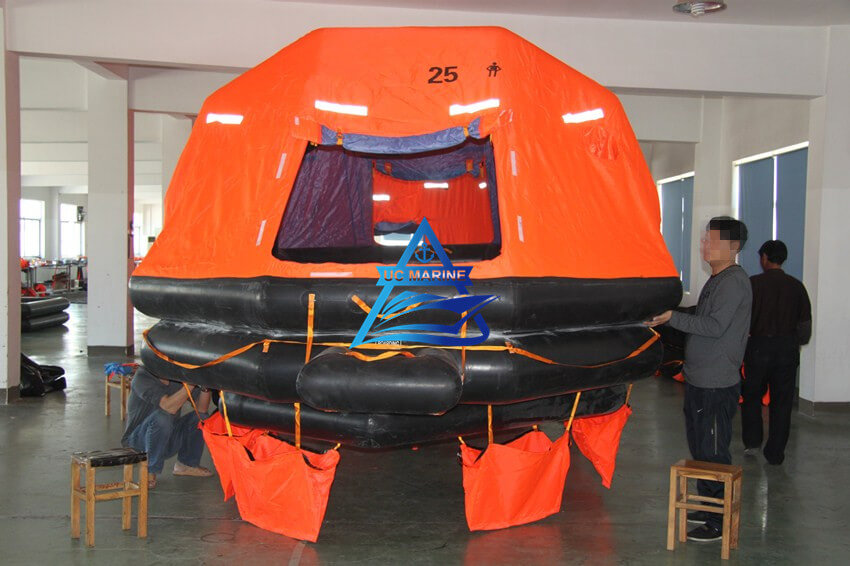

If you are interested in self-righting inflatable life raft, please contact us for more details.Self-Righting Inflatable Liferaft 25 Person.jpg


Self-Righting Inflatable Liferaft 50 Person.jpg

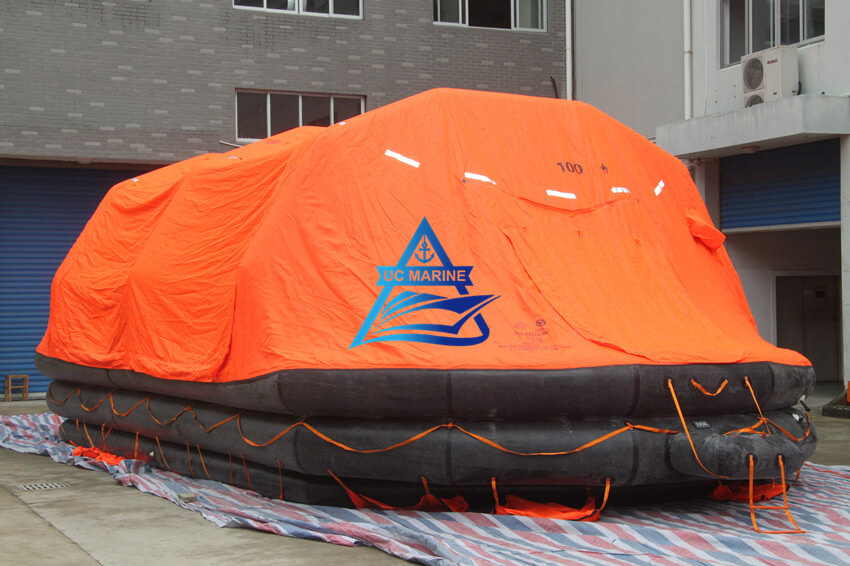

Self-Righting Inflatable Liferaft 100 Person.jpg
