Product Description
Throw Over Board Inflatable Life Raft
*Suitable for installing in the vessels sailing on international voyages.
*Type: ATOB-6\8\10\12\15\16\20\25\30\35.
*It meets the China MSA-“ Regulations for the Statutory Surveys of Ships and offshore Installations—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it′s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),LSA,MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
*Max. Storage Height: 18~36m
*Equipment Outfit: SOLAS A\B PACK
*Certificates:CCS,GL.
Technical Data of Throw Over Board Inflatable Life Raft:
| Model | ATOB-6 | ATOB-8 | ATOB-10 | ATOB-12 | ATOB-15 | ATOB-16 | |
| Shape | Regular hexagon | Regular octagon | Regular octagon | ||||
| Capacity (Persons) | 6 | 8 | 10 | 12 | 15 | 16 | |
| Dimension (L×W×H) | 2104×2104×1200 | 2390×2390×1250 | 2694×2694×1400 | 2924×2924×1500 | 3238×3238×1600 | 3330×3330×1600 | |
| Cylinder | 4L×1 | 5L×1 | 6L×1 | 7L×1 | 9L×1 | 10L×1 | |
| Container dimension (mm) | SOLAS A PACK (a×b) | 1090×Ø615 | 1260×Ø645 | 1335×Ø680 | |||
| SOLAS B PACK (a×b) | 1045×Ø545 | 1090×Ø615 | 1260×Ø645 | ||||
| Packaging dimension (mm) | SOLAS A PACK (c×d×e) | 1140×675×650 | 1330×715×700 | 1410×750×730 | |||
| SOLAS B PACK (c×d×e) | 1100×600×590 | 1100×635×560 | 1330×715×700 | ||||
| Required bollard pull (KN) | For 2knot speed | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 |
| For 3knot speed | 0.8 | 0.9 | 0.9 | 0.95 | 1.3 | 1.5 | |
| Weight (kg) | ≤78 | ≤90 | ≤102 | ≤120 | ≤130 | ≤140 | |
If you are interested in throw over board inflatable life raft, please contact us for more details.

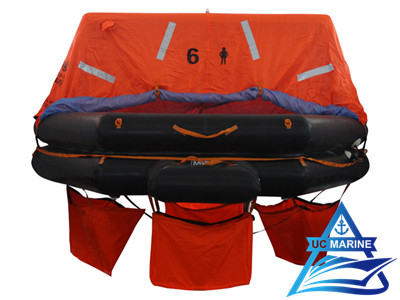

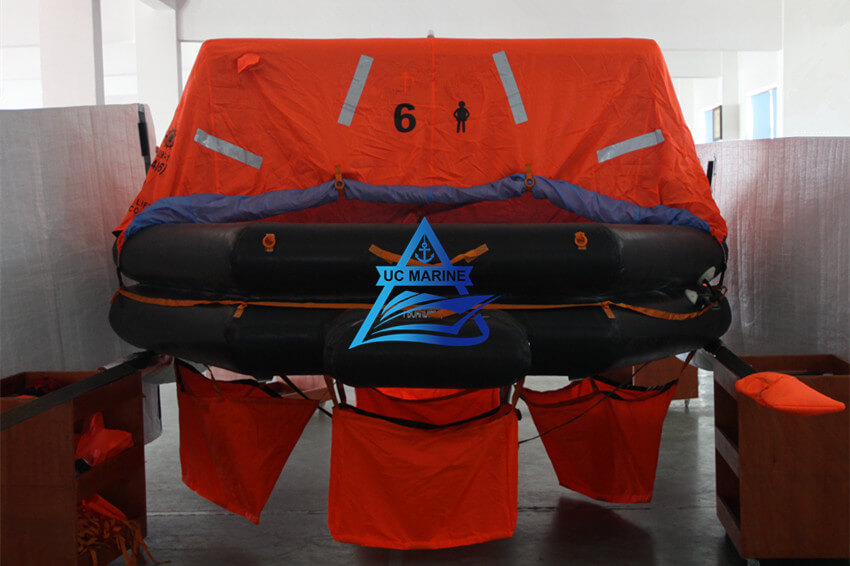

6 Persons Throw Over Board Inflatable Life Raft

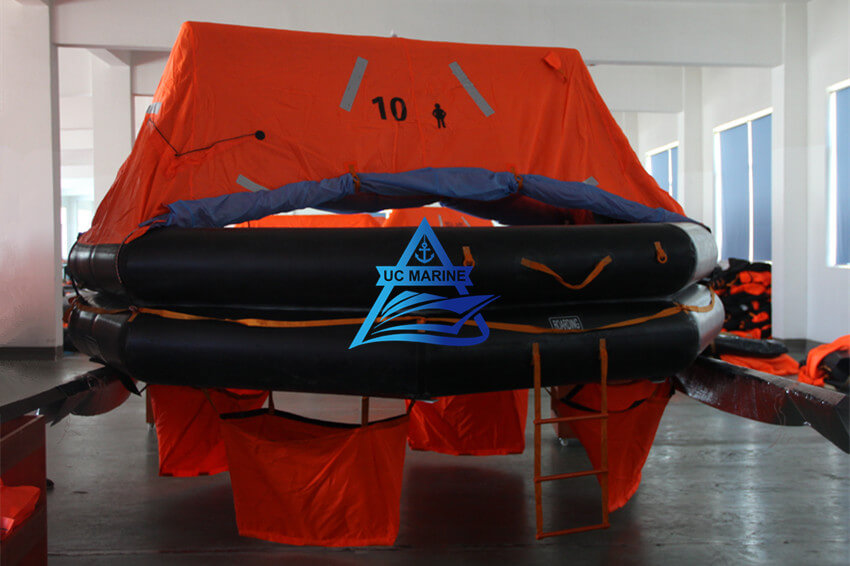

10 Persons Throw Over Board Inflatable Life Raft

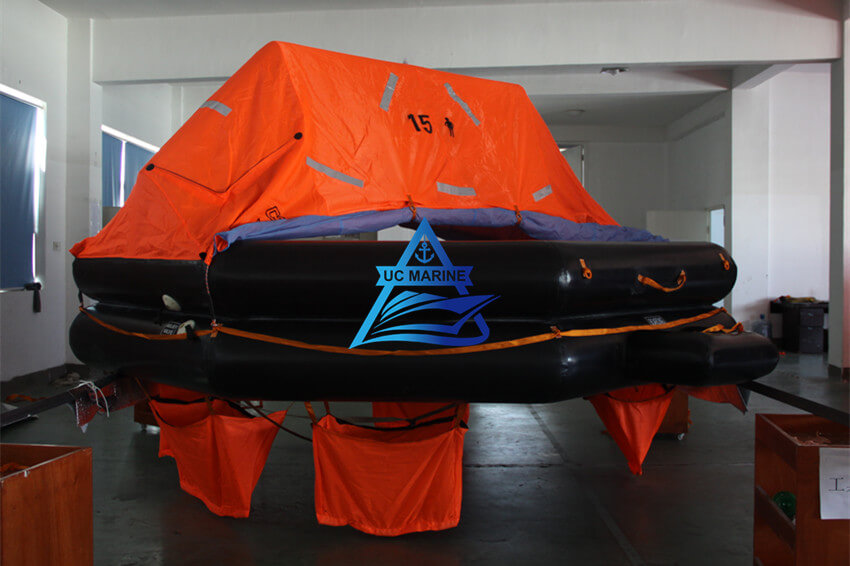

15 Persons Throw Over Board Inflatable Life Raft
