Product Description

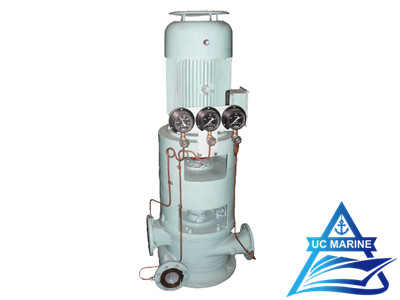

CLN Series Marine Vertical Double-stage Double-outlet Centrifugal Pump
CLN Series marine vertical double-stage double-outlet centrifugal pump is used to deliver fresh water and seawater,widely used for cooling,fire control,chamber loading and other general water drainage.It can be used as the alkali liquid pump and distilling pump in seawater desalination.It can also be used for industrial and urban water supply.The temperature of delivery mediem shall not be over 80℃.
Generally,it can be used under the follwing conditions:
| Using stage | First-stage outlet pipe | Second-stage outlet pipe | Functions |
| 1 | Open | Closed | Ballast pump and bilge pump |
| 2 | Closed | Open | Deck flushing pump and fire pump |
| Type | (50HZ,3phase,380v) Main technical parameter | Motor power | |||
| Capacity | Head | Speed | NPSHR | (kW) | |
| (m3/h） | (m) | (R/min) | (m) | ||
| CLN80-340/2A | 51/51 | 29.5/65 | 1480 | 2.8 | 22 |
| CLN80-340-2C | 116/58 | 24/61 | 1480 | 3.4 | 22 |
| CLN80-340-2D | 112/54 | 15/51.5 | 1480 | 4.3 | 18.5 |
| CLN80-340-2E | 141/62 | 25.5/59 | 1480 | 4.2 | 22 |
| CLN100-380/2A | 95/91 | 36.5/86 | 1480 | 4.1 | 45 |
| CLN100-380/2C | 149/95 | 27.5/77 | 1480 | 3.7 | 45 |
| CLN100-380/2D | 141/95 | 16.5/60.5 | 1480 | 3.6 | 37 |
| CLN100-380/2E | 199/99 | 23.5/69.5 | 1480 | 4.2 | 45 |
| CLN125-380/2A | 124/120 | 33.5/77 | 1480 | 4 | 55 |
| CLN125-380/2C | 215/120 | 23.5/65 | 1480 | 4.2 | 45 |
| CLN125-380/2D | 199/108 | 17/60.5 | 1480 | 4.2 | 37 |
| CLN125-380/2E | 257/124 | 24/68.5 | 1480 | 3.5 | 55 |
| CLN150-380/2A | 199/182 | 33/79 | 1480 | 5.1 | 75 |
| CLN150-380/2C | 248/174 | 22/71.5 | 1480 | 4.9 | 75 |
| CLN150-380/2D | 265/166 | 14.5/62 | 1480 | 4.2 | 55 |
| CLN150-380/2E | 389/182 | 22/70 | 1480 | 4.6 | 75 |
| Type | (60HZ,3phase,440v) Main technical parameter | Motor power | |||
| Capacity | Head | Speed | NPSHR | (kW) | |
| (m3/h） | (m) | (r/min) | (m) | ||
| CLN80-340/2A | 60/62 | 43/95 | 1780 | 3.2 | 37 |
| CLN80-340-2C | 140/70 | 35/89 | 1780 | 4 | 37 |
| CLN80-340-2D | 135/65 | 22/75 | 1780 | 5.3 | 30 |
| CLN80-340-2E | 170/75 | 37/86 | 1780 | 5.2 | 37 |
| CLN100-380/2A | 115/110 | 53/125 | 1780 | 5.1 | 75 |
| CLN100-380/2C | 180/115 | 40/112 | 1780 | 4.5 | 75 |
| CLN100-380/2D | 170/115 | 24/88 | 1780 | 4.4 | 55 |
| CLN100-380/2E | 240/120 | 34/101 | 1780 | 5.2 | 75 |
| CLN125-380/2A | 150/145 | 49/112 | 1780 | 5 | 90 |
| CLN125-380/2C | 260/145 | 34/95 | 1780 | 5.2 | 75 |
| CLN125-380/2D | 240/130 | 25/88 | 1780 | 5.2 | 75 |
| CLN125-380/2E | 310/150 | 35/100 | 1780 | 4.2 | 90 |
| CLN150-380/2A | 240/220 | 48/115 | 1780 | 6.6 | 132 |
| CLN150-380/2C | 420/210 | 32/104 | 1780 | 6.2 | 132 |
| CLN150-380/2D | 320/200 | 21/90 | 1780 | 6 | 90 |
| CLN150-380/2E | 470/220 | 32/102 | 1780 | 5.8 | 110 |
If You Are Interested In CLN Series Marine Vertical Double-stage Double-outlet Centrifugal Pump,Please Contact Us For More Details.
