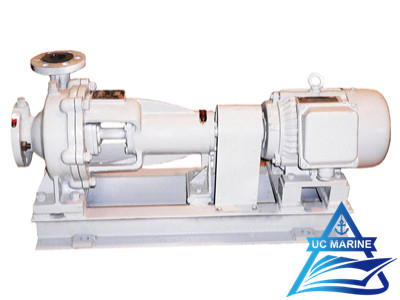

CWL Series Marine Horizontal Centrifugal Pump

Share to:

CWL Series Marine Horizontal Centrifugal Pump

Brand:
UC Marine
Category:
Marine Pumps
Type:
Marine Centrifugal Pump
Certificate:
CCS,BV,ABS,DNV,GL,LR,KR,NK
Place of Origin:
China

Availability:



Inquire

Product Description

Product Description

CWL Series Marine Horizontal Centrifugal Pump

CWL series marine horizontal centrifugal pump are applicable to fire control,cooling and sanitation and applied to industries,to city water supply and drain,and also to angricultural and orchard irrigation.

The pump rotates anticlockwise viewed from motor.

Pump Type	(50HZ,3phase,380v) Main technical parameter					Motor power
	Capacity	Head	Speed	NPSHR	Shaft power	(kw)
	(m3/h)	(m)	R/min	(m)	(kw)	(kw)
32CWL-4	2	20.2	2900	4.2		1.1
	4	21		4.1	0.74
	4.8	20.9		4.1
32CWL-3	2	31	2900	3		1.5
	4	30		2.5	0.99
	4.8	29.2		2.8
40CWL-5	4	22.2	2900	4.4		1.1
	8	21		3	0.85
	9.6	20		3.1
40CWL-4	4	32.3	2900	3.6		2.2
	8	30		2.6	1.31
	9.6	28.5		2.5
40CWL-3	4	43	2900	3		3
	8	42		2.5	2.13
	9.6	41		2.9
50CWL-6	6	22.2	2900	2.8		1.5
	12	21		2	1.16
	14.4	19.8		3
50CWL-4.5	6	31.5	2900	6		3
	12	30		3.6	1.78
	14.4	28		3.3
50CWL-4	6	43.7	2900	2.8		4
	12	42		3.4	2.75
	14.4	40.4		4.1
50CWL-8	16.5	22.8	2900	2.2		3
	21	21		2.2	1.91
	25.2	19		2.6
50CWL-7	10.5	33.6	2900	2.2		4
	21	30		2.4	2.72
	25.2	27		2.9
50CWL-5	10.5	45.5	2900	5		5.5
	21	42		2.8	4.07
	25.2	39.5		3.1
50CWL-3.5	10.5	64	2900	1.8		7.5
	21	60		2.3	6.24
	25.2	57		2.9
65CWL-11	17.5	23.7	2900	3.5		4
	35	21		3.8	2.78
	42	19.4		4
65CWL-8	17.5	33	2900	2.2		5.5
	35	30		2.4	4.08
	42	28		2.7
65CWL-6	17.5	45.2	2900	2.8		7.5
	35	42		2.5	5.98
	42	38.2		2.8
65CWL-5	17.5	64	2950	2.8		11
	35	60		2.5	9.08
	42	57		2.8
80CWL-14	30	23	2900	3.7		5.5
	60	21		3.7	4.4
	72	19.7		3.8
80CWL-14A	28	20.4	2900	3.7		5.5
	56	18.5		3.7	3.71
	67.2	17.5		3.8
80CWL-11	30	34.5	2900	2.2		7.5
	60	30		2.9	6.54
	72	27.2		3.6
80CWL-11A	28.5	31	2900	2.2		7.5
	57	27		2.9	5.74
	68.4	24.5		3.6
80CWL-8	30	45	2950	3.7		11
	60	42		3.2	9.4
	72	38.8		3.1
80CWL-8A	28	40	2950	3.7		11
	56	37.6		3.2	8.07
	68.2	34.5		3.1
80CWL-6	30	67.7	2950	2.8		18.5
	60	60		2.3	14.21
	72	54.4		2.7
80CWL-5.5	30	77.3	2950	2.6		22
	60	75		2.6	17.26
	72	73		2.8
80CWL-5.5A	28.4	69.4	2950	2.6		18.5
	56.8	67.3		2.6	14.8
	68	65.5		2.8
100CWL-18	50	24.4	2950	3.6		11
	100	21		4.3	7.33
	120	17.8		4.9
100CWL-18A	48.2	22.7	2900	3.6		7.5
	96.4	19.5		4.3	6.82
	115.6	16.5		4.9
100CWL-14	50	33.7	2950	2.5		15
	100	30		3.3	10.47
	120	27.5		3.8
100CWL-14A	47.6	30.5	2950	2.5		11
	95.2	27.1		3.3	9.24
	114	24.9		3.8
100CWL-11	50	46.8	2950	2.5		18.5
	100	42		3.2	14.85
	120	37.5		3.7
100CWL-11A	46.8	41	2950	2.5		15
	93.6	36.9		3.2	12.54
	112	32.9		3.7
100CWL-8	50	64.8	2950	3		30
	100	60		3.7	21.79
	120	57		4.5
100CWL-8A	47	57.5	2950	3		22
	94	53.2		3.7	18.66
	112.8	50.6		4.5
More types can be offered,pls contact us for more details.
