Product Description

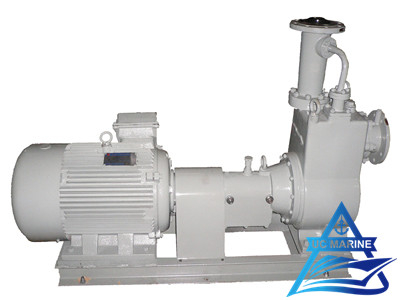

CYZ Series Marine Horizontal Self-priming Centrifugal Oil Pump
CYZ series marine horizontal self-priming centrifugal oil pump are used at boats and ships transport petrochemicals such as petrol,coal oil and diesel oil.The temperature of medium can be between 20degrees below zero and 80degrees.This series pump is a high quality marine cargo oil pump,it also be suitable oil transport to the land oil tanker and oil tanker car and so on.It is able to carry sewater and fresh water less than 80degrees.When used non-corrosive mechanical seal it can be transport chemistry liquid.
The pump rotates anticlockwise viewed from motor.
| Pump type | (50HZ,3phase,380v) Main technical parameter | Motor power | ||||
| Capacity | Head | Speed | NPSHR | Shaft power | (kw) | |
| (m3/h) | (m) | (r/min) | (m) | (kw) | ||
| 40CYZ-20 | 6.3 | 20 | 2900 | 3.5 | 0.8 | 1.1 |
| 40CYZ-25 | 6.3 | 25 | 2900 | 3.5 | 1.07 | 1.5 |
| 40CYZ-32 | 6.3 | 32 | 2900 | 3.5 | 1.48 | 2.2 |
| 40CYZ-40 | 6.3 | 40 | 2900 | 3.5 | 1.96 | 3 |
| 50CYZ-25 | 12.5 | 25 | 2900 | 3.5 | 1.7 | 2.2 |
| 50CYZ-32 | 12.5 | 32 | 2900 | 3.5 | 2.37 | 3 |
| 50CYZ-40 | 12.5 | 40 | 2900 | 3.5 | 3.16 | 4 |
| 50CYZ-50 | 12.5 | 50 | 2900 | 3.5 | 4.15 | 5.5 |
| 65CYZ-25 | 25 | 25 | 2900 | 4 | 2.79 | 4 |
| 65CYZ-32 | 25 | 32 | 2900 | 4 | 3.75 | 5.5 |
| 65CYZ-40 | 25 | 40 | 2900 | 4 | 4.87 | 5.5 |
| 65CYZ-50 | 25 | 50 | 2900 | 4 | 6.55 | 7.5 |
| 65CYZ-63 | 25 | 63 | 2900 | 4 | 8.76 | 11 |
| 80CYZ-25 | 50 | 25 | 2900 | 4 | 5.2 | 7.5 |
| 80CYZ-32 | 50 | 32 | 2950 | 4 | 6.77 | 11 |
| 80CYZ-40 | 50 | 40 | 2950 | 4 | 8.59 | 11 |
| 80CYZ-50 | 50 | 50 | 2950 | 4 | 11.27 | 15 |
| 80CYZ-63 | 50 | 63 | 2950 | 4 | 14.7 | 18.5 |
| 80CYZ-80 | 50 | 80 | 2950 | 4 | 19.32 | 22 |
| 100CYZ-40 | 100 | 40 | 2950 | 4 | 16.27 | 18.5 |
| 100CYZ-50 | 100 | 50 | 2950 | 4 | 20.65 | 30 |
| 100CYZ-65 | 100 | 65 | 2950 | 4 | 27.23 | 30 |
| 100CYZ-75 | 70 | 75 | 2950 | 4 | 24.2 | 30 |
| 100CYZ-80 | 100 | 80 | 2950 | 4 | 34.61 | 30 |
| 150CYZ-50 | 200 | 50 | 1480 | 5 | 42.59 | 55 |
| 150CYZ-63 | 200 | 63 | 1480 | 5 | 57.24 | 75 |
| 150CYZ-80 | 200 | 80 | 1480 | 5 | 72.68 | 90 |
| 200CYZ-50 | 400 | 50 | 1480 | 5 | 76.71 | 90 |
| 200CYZ-63 | 400 | 63 | 1480 | 5 | 99.45 | 110 |
| 200CYZ-80 | 400 | 80 | 1480 | 5 | 130.06 | 160 |
If You Are Interested In CYZ Series Marine Horizontal Self-priming Centrifugal Oil Pump,Please Contact Us For More Details.
