Product Description

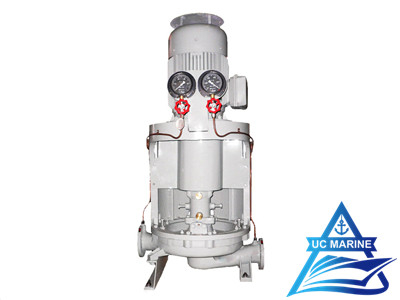

CLV Series Marine Vertical Centrifugal Pump
CLV series vertical centrifugal pump is our newly developed product driven by a marine motor.It is widely used for transporting fresh water,seawater,condensate,oils and saline water.The transported medium shall not contain any abrasive material and any other chemicals corroive on the pump.It widely serves as fresh water and seawater cooling pump,bilge pump,ballast pump and general pump,and used for seawater desalting device and marine pressure cabinet.The transported medium temperature shall note exceed 80℃.self-priming device are can be assembled according to users' order with additional cost,to achieve self-priming function.
More technical details:
| Type | Main technical parameter(50HZ,3phase,380v) | Motor Power | ||||
| Capacity | Head | Speed | NPSHR | Shaft power | (kW) | |
| (m3/h) | (m) | (r/min) | (m) | (kW) | ||
| CLV65-200A | 27 | 14.5 | 1450 | 2.5 | 1.8 | 2.2 |
| CLV65-280A | 30 | 21 | 1450 | 2.5 | 3.1 | 4 |
| CLV65-300A | 30 | 28 | 1450 | 2.5 | 4.4 | 5.5 |
| CLV65-350A | 25 | 41 | 1450 | 2.5 | 6.1 | 7.5 |
| CLV80-200A | 48 | 14.5 | 1450 | 2.5 | 2.8 | 4 |
| CLV80-220A | 45 | 62 | 2950 | 4 | 12 | 15 |
| CLV80-220B1 | 45 | 48 | 2950 | 4 | 9.8 | 11 |
| CLV80-280A | 54 | 21.5 | 1450 | 3 | 4.5 | 5.5 |
| CLV80-300A | 46 | 28 | 1450 | 2.8 | 5.8 | 7.5 |
| CLV80-350A | 54 | 41 | 1480 | 3 | 10.5 | 15 |
| CLV80-350B | 40 | 35 | 1480 | 2.5 | 6.9 | 11 |
| CLV80-350B2 | 42 | 41 | 1480 | 2.5 | 8.4 | 11 |
| CLV100-200A | 83 | 14.5 | 1450 | 3 | 4.6 | 5.5 |
| CLV100-220A | 95 | 68.5 | 2950 | 4.5 | 24.2 | 30 |
| CLV100-220B | 87 | 55 | 2950 | 4.5 | 18.5 | 22 |
| CLV100-280A | 83 | 21 | 1450 | 3 | 6.4 | 7.5 |
| CLV100-300A | 83 | 28 | 1480 | 2.8 | 9.1 | 11 |
| CLV100-350A | 83 | 41 | 1480 | 3.2 | 14.2 | 18.5 |
| CLV125-200A | 116 | 14 | 1450 | 3.5 | 5.9 | 265 |
| CLV125-220A | 149 | 68.5 | 2950 | 5.5 | 36.9 | 595 |
| CLV125-220B | 128 | 55 | 2950 | 5 | 26.7 | 510 |
| CLV125-270A | 140 | 86 | 2950 | 5 | 44.7 | 800 |
| CLV125-280A | 125 | 21 | 1480 | 3.5 | 9.6 | 11 |
| CLV125-300A | 125 | 28 | 1480 | 3 | 14.3 | 18.5 |
| CLV125-350A | 125 | 41 | 1480 | 3.5 | 19.8 | 30 |
| CLV125-350B | 116 | 34 | 1480 | 3.5 | 15.9 | 22 |
| CLV150-200A | 190 | 14 | 1480 | 3.5 | 9.5 | 11 |
| CLV150-220A | 273 | 62 | 2950 | 4.5 | 61.4 | 75 |
| CLV150-270A | 265 | 86 | 2950 | 4 | 82.1 | 110 |
| CLV150-280A | 182 | 21 | 1480 | 3.5 | 13.4 | 18.5 |
| CLV150-300A | 182 | 27.5 | 1480 | 4 | 17.7 | 22 |
| CLV150-350A | 190 | 41 | 1480 | 3.5 | 29.1 | 37 |
| CLV150-350B2 | 190 | 35 | 1480 | 3.5 | 25.6 | 30 |
| CLV200-200A | 332 | 13.7 | 1480 | 4 | 15.9 | 18.5 |
| CLV200-280A | 330 | 20.5 | 1480 | 4.5 | 23.4 | 30 |
| CLV200-280B | 290 | 17 | 1480 | 4.5 | 17.3 | 22 |
| CLV200-280B2 | 250 | 20.5 | 1480 | 4 | 17.9 | 22 |
| .......... | ....... | ........ | ....... | ..... | ........ | ...... |
| Pls contact us for more details | ||||||
If You Are Interested In CLV Series Marine Vertical Centrifugal Pump,Please Contact Us For More Details.
