Product Description

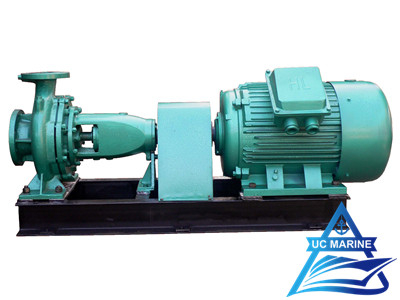

CIS Series Marine Horizontal Centrifugal Pump
CIS series marine horizontal centrifugal pump is widely used for transfer of fresh water,seawater.The pumps are applicable to fire control,cooling and sanitation and applied to industries,to city water supply and drain,and also to agricultural and orchard irrigation.
The pump rotateds clockwise viewed from motor.
Pump Type | (50HZ,3phase,380v) Main techincal parameter | Motor power | ||||
Capacity | Head | Speed | NPSHR | Shaft power | (kw) | |
(m3/h) | (m) | (r/min) | (m) | (kw) | ||
CIS50-32-125 | 7.5 | 22 | 2900 | 2 | 2.2 | |
12.5 | 20 | 2 | 1.13 | |||
15 | 18.5 | 2.5 | ||||
CIS50-32-125A | 6.7 | 17.6 | 2900 | 2 | 1.5 | |
11.2 | 16 | 2 | 0.82 | |||
13.4 | 14.8 | 2.5 | ||||
CIS50-32-160 | 7.5 | 34.3 | 2900 | 2 | 3 | |
12.5 | 32 | 2 | 2.02 | |||
15 | 29.6 | 2.5 | ||||
CIS50-32-160A | 7.05 | 30.5 | 2900 | 2 | 2.2 | |
11.8 | 28.5 | 2 | 1.7 | |||
14.1 | 26.3 | 2.5 | ||||
CIS50-32-160B | 6.48 | 25.6 | 2900 | 2 | 1.5 | |
10.8 | 23.8 | 2 | 1.35 | |||
13 | 22 | 2.5 | ||||
CIS50-32-200 | 7.5 | 52.5 | 2900 | 2 | 5.5 | |
12.5 | 50 | 2 | 3.54 | |||
15 | 48 | 2.5 | ||||
CIS50-32-200A | 7.2 | 48.3 | 2900 | 2 | 4 | |
12 | 46 | 2 | 3.1 | |||
14.4 | 44.2 | 2.5 | ||||
CIS50-32-200B | 6.5 | 39.1 | 2900 | 2 | 3 | |
10.8 | 37.3 | 2 | 2.29 | |||
12.9 | 35.8 | 2.5 | ||||
CIS50-32-250 | 7.5 | 82 | 2950 | 2 | 11 | |
12.5 | 80 | 2 | 7.17 | |||
15 | 78.5 | 2.5 | ||||
CIS50-32-250A | 7 | 71.8 | 2900 | 2 | 7.5 | |
11.7 | 70 | 2 | 5.87 | |||
14 | 68.7 | 2.5 | ||||
CIS50-32-250B | 6.5 | 61.2 | 2900 | 2 | 5.5 | |
10.8 | 59.7 | 2 | 4.63 | |||
13 | 58.5 | 2.5 | ||||
CIS65-50-125 | 15 | 21.8 | 2900 | 2 | 3 | |
25 | 20 | 2.5 | 1.97 | |||
30 | 18.5 | 3 | ||||
CIS65-50-125A | 14.2 | 19.7 | 2900 | 2 | 2.2 | |
23.8 | 18.1 | 2.5 | 1.7 | |||
28.5 | 16.7 | 3 | ||||
CIS65-50-160 | 15 | 35 | 2900 | 2 | 5.5 | |
25 | 32 | 2 | 3.35 | |||
30 | 30 | 2.5 | ||||
CIS65-50-160A | 14 | 30.5 | 2900 | 2 | 4 | |
23.4 | 28 | 2 | 2.75 | |||
28 | 26.2 | 2.5 | ||||
CIS65-50-160B | 13 | 26.3 | 2900 | 2 | 3 | |
21.7 | 24 | 2 | 2.2 | |||
26 | 22.6 | 2.5 | ||||
CIS65-40-200 | 15 | 53 | 2900 | 2 | 7.5 | |
25 | 50 | 2 | 5.67 | |||
30 | 47 | 2.5 | ||||
CIS65-40-200A | 14 | 46 | 2900 | 2 | 5.5 | |
23.4 | 44 | 2 | 4.67 | |||
28 | 41 | 2.5 | ||||
CIS65-40-200B | 12.6 | 37.3 | 2900 | 2 | 4 | |
21 | 35.3 | 2 | 3.36 | |||
25.2 | 33.1 | 2.5 | ||||
CIS65-40-250 | 15 | 82 | 2950 | 2 | 15 | |
25 | 80 | 2 | 10.28 | |||
30 | 78 | 2.5 | ||||
CIS65-40-250A | 14 | 71.8 | 2950 | 2 | 11 | |
23.4 | 70 | 2 | 8.42 | |||
28 | 68.3 | 2.5 | ||||
CIS65-40-250B | 12.6 | 57.8 | 2900 | 2 | 7.5 | |
21 | 56 | 2 | 6.04 | |||
25.2 | 53.2 | 2.5 | ||||
CIS65-40-315 | 15 | 127 | 2950 | 2.5 | 30 | |
25 | 125 | 2.5 | 21.3 | |||
30 | 123 | 3 | ||||
CIS65-40-315A | 14.3 | 116 | 2950 | 2.5 | 22 | |
23.9 | 114 | 2.5 | 18.6 | |||
28.6 | 112 | 3 | ||||
More types can be offered,pls contact us for more details |
